Запчасти Case IH ECOLO-TIGER 875 (75.200.AE[28]) - DISK TRUNNION LEFT FRONT 7 BLADE (75) - SOIL PREPARATION

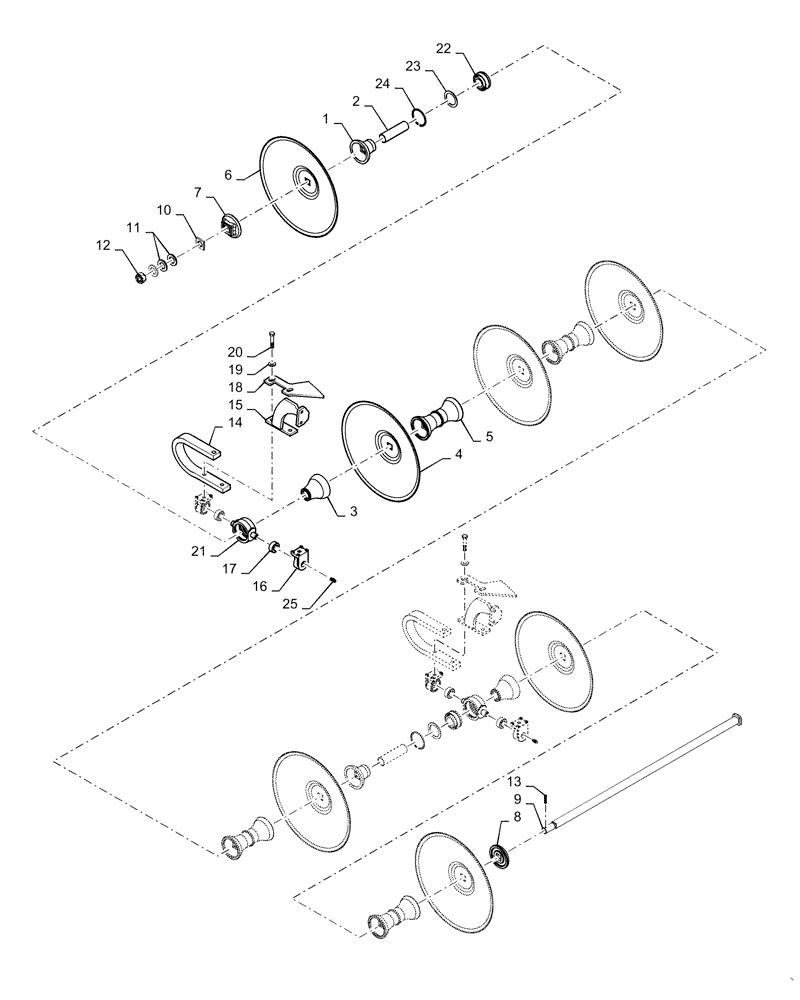

Схема запчастей Case IH ECOLO-TIGER 875 - (75.200.AE[28]) - DISK TRUNNION LEFT FRONT 7 BLADE (75) - SOIL PREPARATION
5
11
1
9
25
15
4
8
3
6
12
2
10
17
13
24
7
16
20
23
19
14
18
22
21

Артикул

Название

Примечание

Количество

1

87471560

BEARING HOUSING

Spool Short 12" Heavy

2шт.

2

403922A1

SLEEVE,49.276mm ID x 55.17mm OD x 197mm L

Arbor Bolt Support

2шт.

3

87471561

BEARING HOUSING

Spool Long 12" Heavy

2шт.

4

58934C3

DISK HARROW

673 X 6.5 mm

6шт.

5

403931A1

SPOOL

Spacing 12" Heavy

4шт.

6

87443004

PLOW DISC

24" X 6.5 mm

1шт.

7

549973R2

SQ HOLE WASHER

End

1шт.

8

60615C1

WASHER

Head

1шт.

9

87407707

BOLT

7 Blade 12" Spacing

1шт.

10

488836R2

NUT

Strip

1шт.

11

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1-1/2"

3шт.

12

84151572

SLOTTED NUT

Hex

1шт.

13

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

.312 X 2.250"

1шт.

14

87562227

HANGER

Spring Bearing

1шт.

15

47478136

MOUNT

Scraper Angle Left

1шт.

16

195109A1

TRUNNION

Pivot

2шт.

17

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Pivot

2шт.

18

47478076

SCRAPER BLADE

Flat

1шт.

19

84156178

WASHER,0.78" ID x 1.75" OD x 0.18" Thk

.781 X 1.750 X .179"

2шт.

20

50159

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

2шт.

21

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

1шт.

22

409556A1

BEARING, BALL,55.56mm ID x 110mm OD x 55.56mm W

1шт.

23

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

1шт.

24

87016938

SNAP RING,#433, 4.641", Int

1шт.

25

87414

LUBE NIPPLE,1/4" - 28

1шт.

Выбрано товаров: 25
