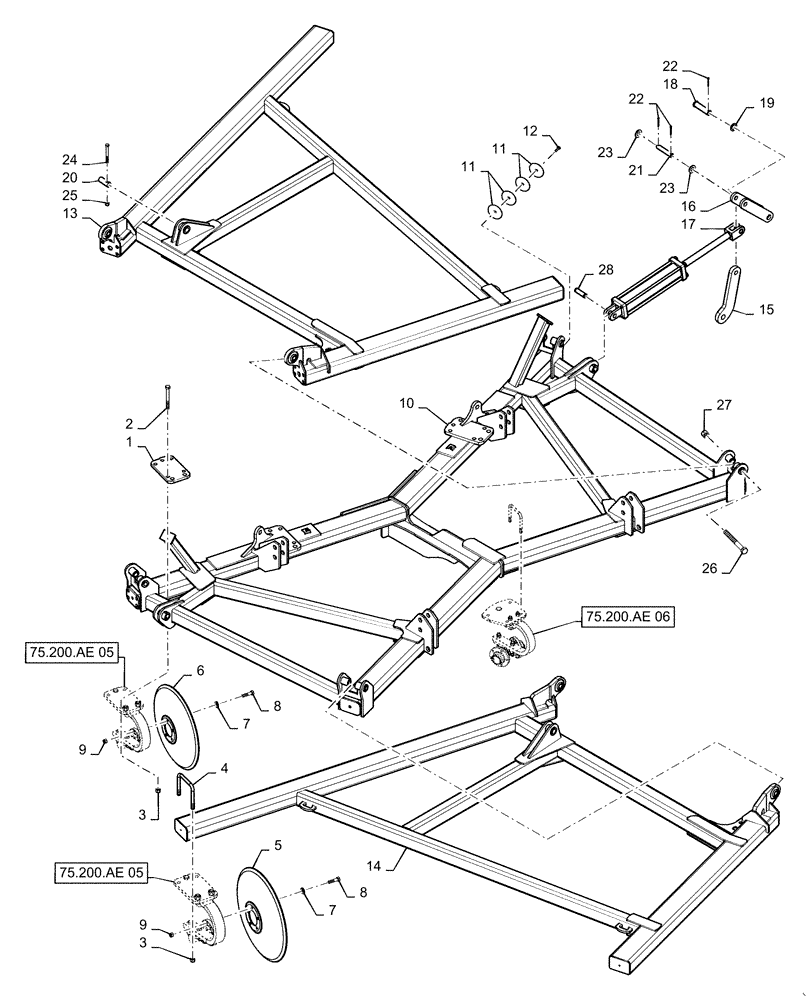

Запчасти Case IH ECOLO-TIGER 875 (75.200.AE[04]) - INDIVIDUAL CUSHION DISK 13 SHANK 26 FOOT (75) - SOIL PREPARATION

1

87541405

PLATE

Disk Mount

2шт.

2

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

16шт.

3

280375

NUT,3/4"-10, GC

164шт.

4

87427186

U-BOLT

74шт.

5

47648677

DISC

569 X 103.6 X 6.5"

4шт.

6

47648699

DISC

623.87 X 103.6 X 6.5"

38шт.

7

84158486

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

210шт.

8

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

210шт.

9

88871

NUT,1/2"-13, GC

210шт.

10

47420304

FRAME

Disk Gang Painted With Decal

1шт.

11

47456755

SHIM

Wing

16шт.

12

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

13

47500280

FRAME

Disk Left

1шт.

14

47500284

FRAME

Disk Right

1шт.

15

84171193

LINK

Disk Fold

2шт.

16

84171207

LINK

Wing

2шт.

17

84220783

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.5 X 16"

2шт.

18

84156996

PIN

Clevis 1.250 X 5.00"

2шт.

19

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

2шт.

20

87746709

PIN

2шт.

21

84380511

PIN,25.4mm OD x 140mm L

Disk Fold

2шт.

22

88182

COTTER PIN,1/4" OD x 2" L

6шт.

23

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

24

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

25

88871

NUT,1/2"-13, GC

2шт.

26

6436

BOLT,Hex, 1" - 8 x 9", Gr 5

4шт.

27

9626600

NUT,1"-8, GC

4шт.

28

25890100

KIT

Pin

1шт.
