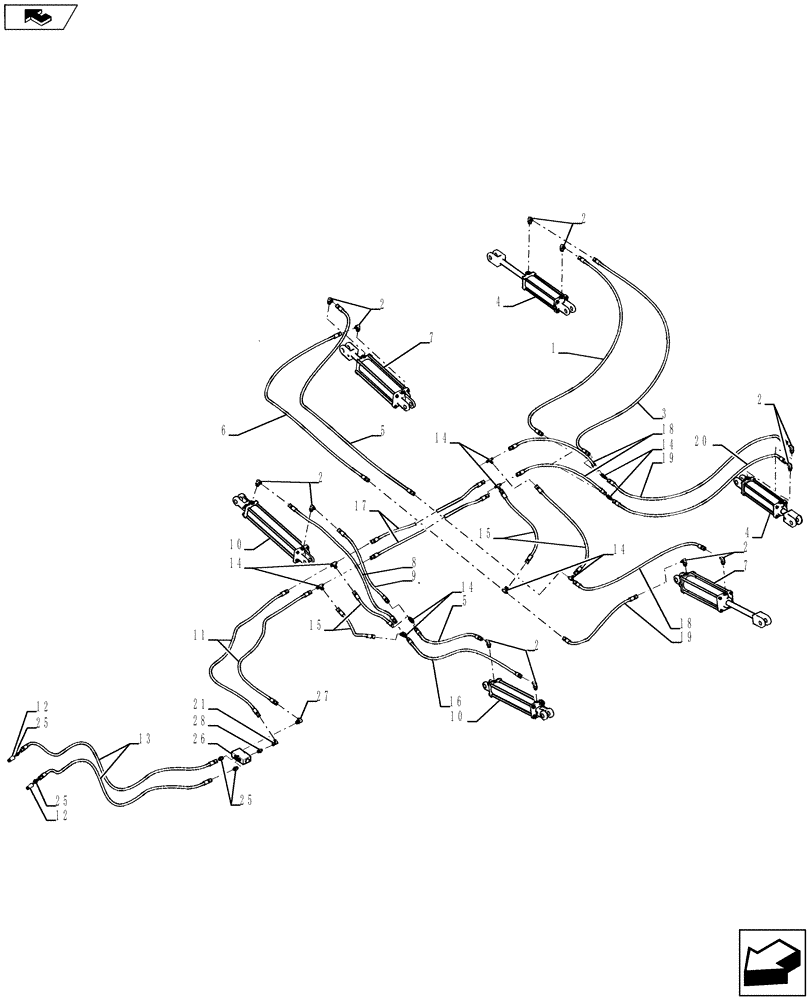

Запчасти Case IH ECOLO-TIGER 875 (35.703.AB[07]) - HYDRAULIC LINES WING FOLD BASIC 11 SHANK 22 FOOT (35) - HYDRAULIC SYSTEMS

1

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

1шт.

2

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

12шт.

3

812382C1

HYDRAULIC HOSE

1/4 X 50

1шт.

4

25335162

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 X 16, Leveler With Finisher

2шт.

5

147878C1

HOSE

1/4 x 65

2шт.

6

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

1шт.

7

25335120

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3-1/2 x 12

2шт.

7

25335120R

REMAN-HYD CYLINDER

Ecolo-Tiger Disk Ripper

2шт.

25335120C

CORE-HYD CYLINDER

Return Number

1шт.

8

1284278C1

HYDRAULIC HOSE

1/4 x 41

1шт.

9

1969386C1

HOSE

1/4 x 23

1шт.

10

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16, 11 Shank

2шт.

10

25330160R

REMAN-HYD CYLINDER

ECOLO-TIGER DISK RIPPER, 3 x 16, 11 Shank

2шт.

10

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

11

813006C2

HYDRAULIC HOSE

3/8 x 85

2шт.

12

25705041

COUPLING

3/4 Hydraulic

2шт.

13

97647C1

HYDRAULIC HOSE,12.70 mm ID x 4318.00 mm, SAE 100 R1

2шт.

14

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

10шт.

15

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

1/4 x 19

4шт.

16

97479C1

HYDRAULIC HOSE,6.35 mm ID x 2159.00 mm, SAE 100 R1

1шт.

17

129671C2

HYDRAULIC HOSE

3/8 x 105

2шт.

18

87706C1

HYDRAULIC HOSE

3/8 x 29

2шт.

19

191936A1

HOSE

1/4 x 110

2шт.

20

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

2шт.

21

241074

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

22

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

22

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

23

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

24

86992213

NUT

Not Shown

1шт.

25

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

3/4 x 9/16, Serial Range: -25

4шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

26

298624A1

VALVE

1шт.

27

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

1шт.

28

1263477C3

HYD CONNECTOR

1шт.
