(35.100.AA[14]) - KIT CYLINDER LUG 11/13 SHANK

Запчасти Case IH ECOLO-TIGER 875 (35.100.AA[14]) - KIT CYLINDER LUG 11/13 SHANK (35) - HYDRAULIC SYSTEMS

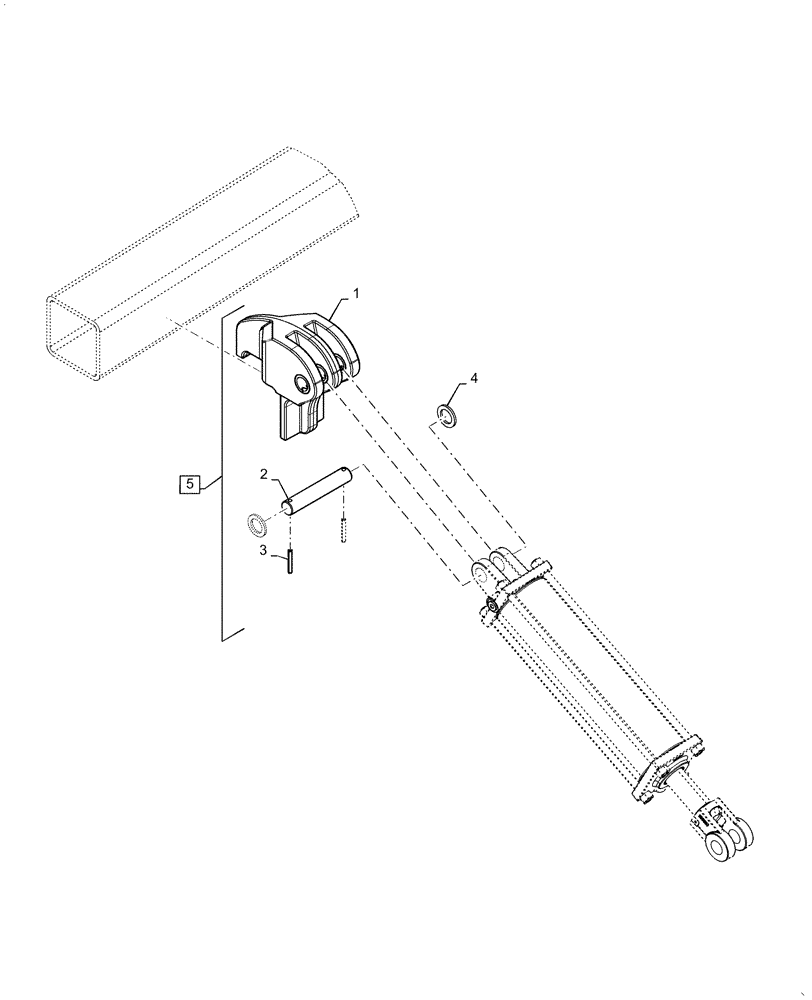

Схема запчастей Case IH ECOLO-TIGER 875 - (35.100.AA[14]) - KIT CYLINDER LUG 11/13 SHANK (35) - HYDRAULIC SYSTEMS
5
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47840285

LUG

Cylinder

2шт.

2

47852480

PIN

Clevis 1.25 x 7

2шт.

3

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

4шт.

4

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

5

47927192

KIT

Cyliner Lug 11/13 Shank Incl 1 - 4 Ins Sheet 47927201

1шт.
