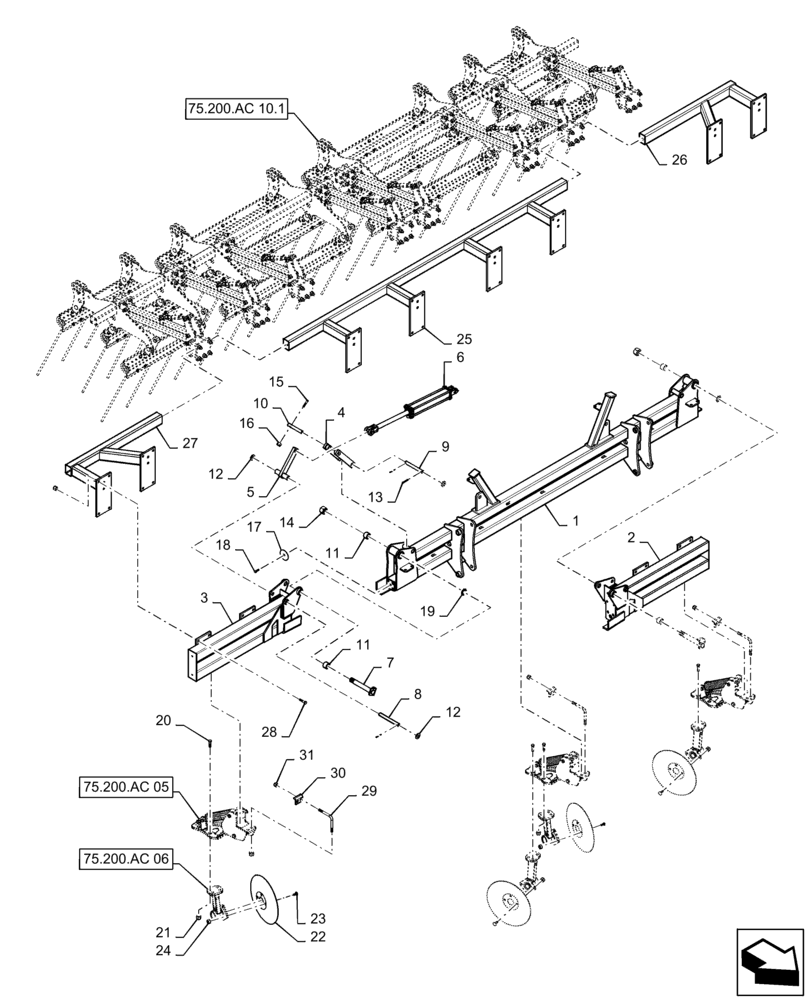

Запчасти Case IH ECOLO-TIGER 875 (75.200.AC[09.1]) - DISK LEVELER WITH HD COIL TINES 9 SHANK 18 FOOT (75) - SOIL PREPARATION

1

47411083

FRAME

Leveler With Decals

1шт.

2

47411524

FRAME

Wing Left With Decals

1шт.

3

47411525

FRAME

Wing Right With Decals

1шт.

4

47407046

LINK

Wing Hinge

2шт.

5

87755236

LINK

Leveler Hinge

2шт.

6

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.0 X 16

2шт.

6

25330160R

REMAN-HYD CYLINDER

2шт.

6

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

7

84407881

PIN

Wing Pivot

2шт.

8

84407853

PIN

Leveler Lift

2шт.

9

47407066

PIN

Wing Lift

2шт.

10

87748424

PIN

Cylinder

2шт.

11

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

2.0 OD X 1.5

4шт.

12

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

8шт.

13

88182

COTTER PIN,1/4" OD x 2" L

8шт.

14

87020431

LOCK NUT

1-1/2"

2шт.

15

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

16

88871

NUT,1/2"-13, GC

2шт.

17

47456755

SHIM

Wing

4шт.

18

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

19

17624022

BUSHING

2шт.

20

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

36шт.

21

85700693

NUT,5/8" - 11, Gr C

68шт.

22

84180366

DISK HARROW

459.74 X 63.5 X 3

18шт.

23

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

72шт.

24

280431

NUT,1/2"-13, G5

72шт.

25

47579124

FRAME

With Decals

1шт.

26

47579121

FRAME

Left Wing

1шт.

27

47579120

FRAME

Right Wing

1шт.

28

87630

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

32шт.

29

87427192

SPECIAL BOLT

0.75 X 5.94"

20шт.

30

84575666

PLATE

L-Bolt Brace

10шт.

31

280375

NUT,3/4"-10, GC

40шт.
