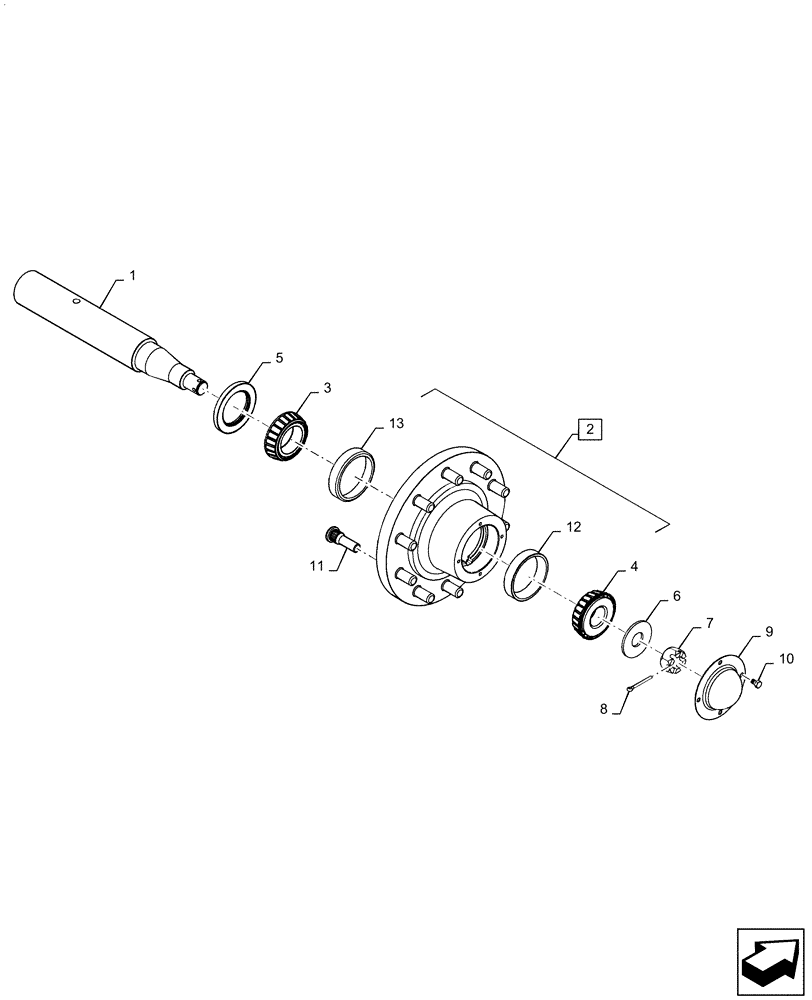

Запчасти Case IH ECOLO-TIGER 875 (44.901.AA[02]) - HUB 10 BOLT 9 SHANK 18 FOOT (44) - WHEELS

1

47402747

SPINDLE

3"

1шт.

2

28787101

HUB ASSY.

With Cups, Incl 11 - 13

1шт.

3

21872505

ROLLER BEARING,63.5 mm ID

1шт.

4

21871750

ROLLER BEARING,1.75" ID

1шт.

5

21933000

SEAL

Grease

1шт.

6

17952632

WASHER

1шт.

7

14052012

SLOTTED NUT

1шт.

8

88182

COTTER PIN,1/4" OD x 2" L

1шт.

9

28487101

HUB CAP

Q871

1шт.

10

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

11

16412418

STUD

Wheel Bolt

10шт.

11

14091203

NUT

10шт.

12

714428

BEARING CUP

1шт.

13

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

1шт.
