Запчасти Case IH ECOLO-TIGER 875 (75.200.AE[08]) - GANG CUSHION TRUNNION DISK FRAME 9 SHANK 18 FOOT (75) - SOIL PREPARATION

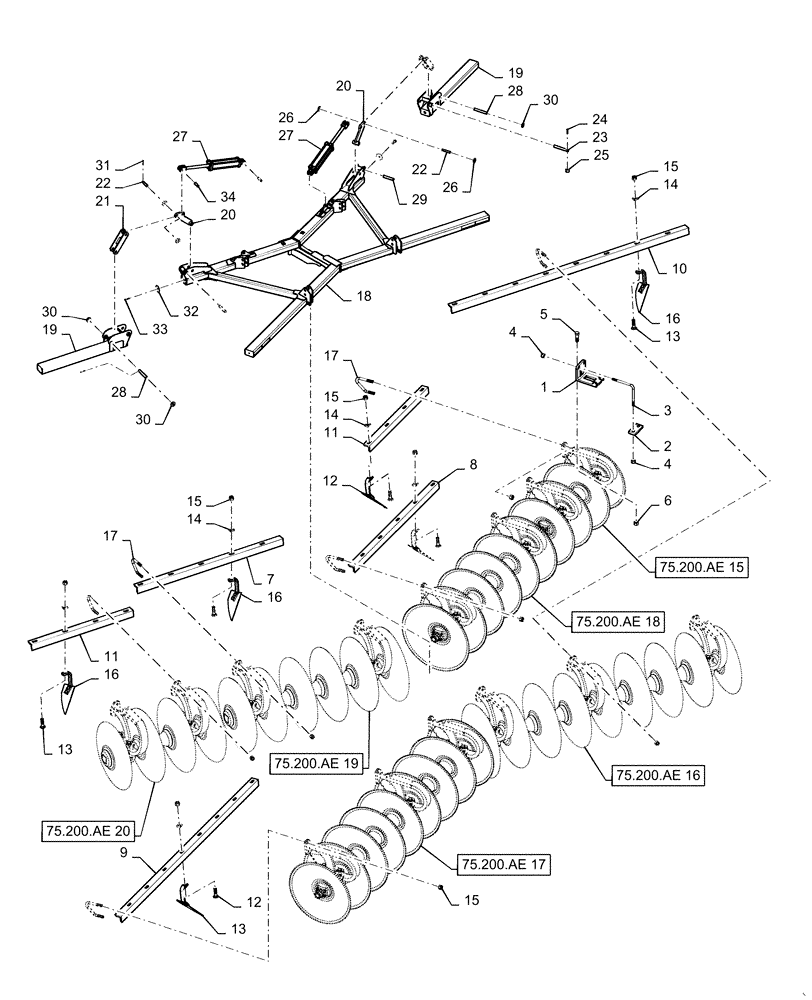

Схема запчастей Case IH ECOLO-TIGER 875 - (75.200.AE[08]) - GANG CUSHION TRUNNION DISK FRAME 9 SHANK 18 FOOT (75) - SOIL PREPARATION
17
14
33
15
20
23
16
13
25
27
29
13
3
17
15
7
10
20
11
75.200.ae 19
18
15
8
22
19
12
5
4
28
22
9
11
14
75.200.ae 16
30
26
1
32
14
24
16
30
12
75.200.ae 15
31
27
13
75.200.ae 18
34
6
75.200.ae 20
75.200.ae 17
2
26
4
16
15
28
19
30
21

Артикул

Название

Примечание

Количество

1

47426871

MOUNT

Gang Mount Clamp

2шт.

2

410082A1

STRAP

Gangs

14шт.

3

87427193

SPECIAL BOLT

0.75 X 7.81"

28шт.

4

280375

NUT,3/4"-10, GC

56шт.

5

9845479

BOLT,Hex, 7/8" - 9 x 3", Gr 5

14шт.

6

87681198

NUT,Hex, 7/8"-9, 0.45 high

14шт.

7

87565570

ANGLE BAR

12" Left Painted

1шт.

8

87565571

ANGLE BAR

12" Right Painted

1шт.

9

87565572

ANGLE BAR

12" Right Painted

1шт.

10

87565573

ANGLE BAR

12" Left Painted

1шт.

11

87472832

ANGLE BAR

4 Blade 4 Scraper

2шт.

12

84180924

CARRIAGE BOLT

.625 X 2.50"

20шт.

13

87567021

SCRAPER BLADE

Left Rear

10шт.

14

87623346

WASHER,16.66mm ID x 38.1mm OD x 13.72mm Thk

0.656"

20шт.

15

85700693

NUT,5/8" - 11, Gr C

48шт.

16

87567027

SCRAPER BLADE

Right Rear

10шт.

17

87562173

BOLT

.625"

14шт.

18

47420812

FRAME

Gang Disk With Decals

1шт.

19

47420811

FRAME

Disk Wing

2шт.

20

47420810

LINK

Disk Outer

2шт.

21

47420808

LINK

Disk Outer

2шт.

22

84380511

PIN,25.4mm OD x 140mm L

Disk Fold

2шт.

23

87394432

PIN,31.75mm OD x 236mm L

Wing Hinge

2шт.

24

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

25

88871

NUT,1/2"-13, GC

2шт.

26

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

27

84220783

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.5 X 16"

2шт.

28

87734576

PIN

Wing Link 1.25" x 8.5"

2шт.

29

84182871

PIN

1.25" X 6.7"

2шт.

30

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

1.312 X 1.984 X .180"

8шт.

31

88182

COTTER PIN,1/4" OD x 2" L

12шт.

32

47456755

SHIM

Wing

4шт.

33

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

34

25890100

KIT

Pin

2шт.

Выбрано товаров: 34
