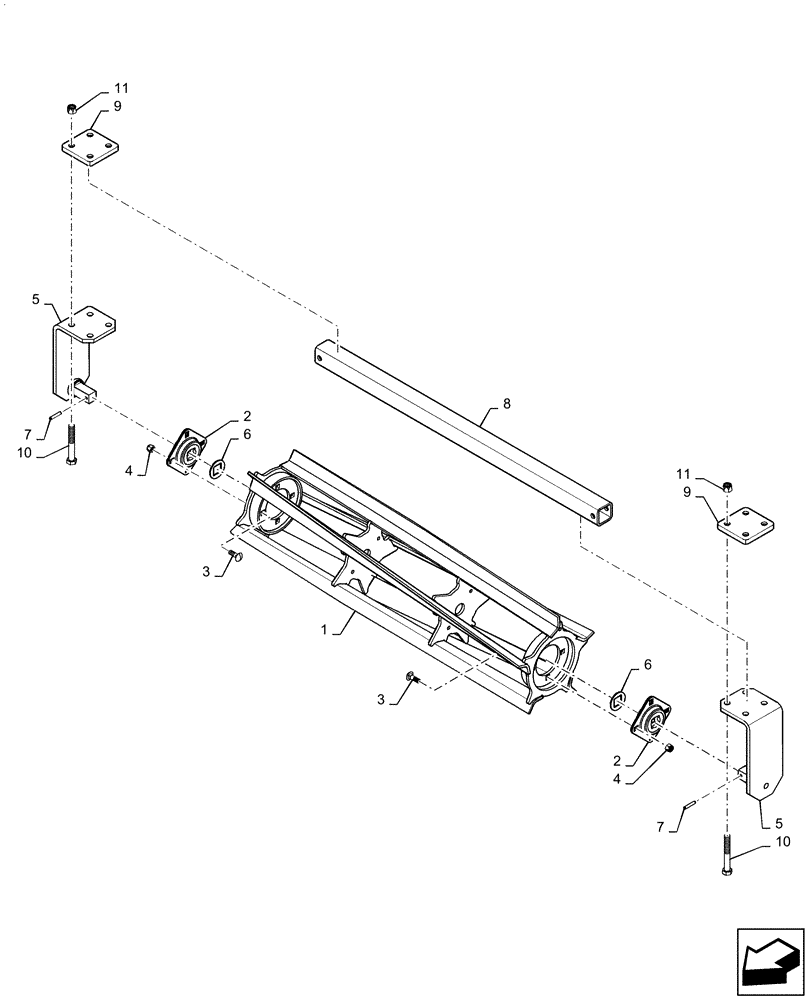

Запчасти Case IH ECOLO-TIGER 875 (75.200.AF[07]) - LEVELER BASKET 5 BAR 48 INCH (75) - SOIL PREPARATION

1

87714550

BASKET

Frame 5 Bar 48 Inch

1шт.

2

47451691

BEARING CONE

greaseless

2шт.

3

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

8шт.

4

88871

NUT,1/2"-13, GC

8шт.

5

47399154

SPINDLE

Basket Square Bore

2шт.

6

84151924

SHIM

2шт.

7

84221259

SLOTTED PIN

.312 X 1.750"

2шт.

8

87710651

REEL

Tube

1шт.

9

47399482

PLATE

Support Basket

2шт.

10

86529695

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

8шт.

11

85700693

NUT,5/8" - 11, Gr C

8шт.
