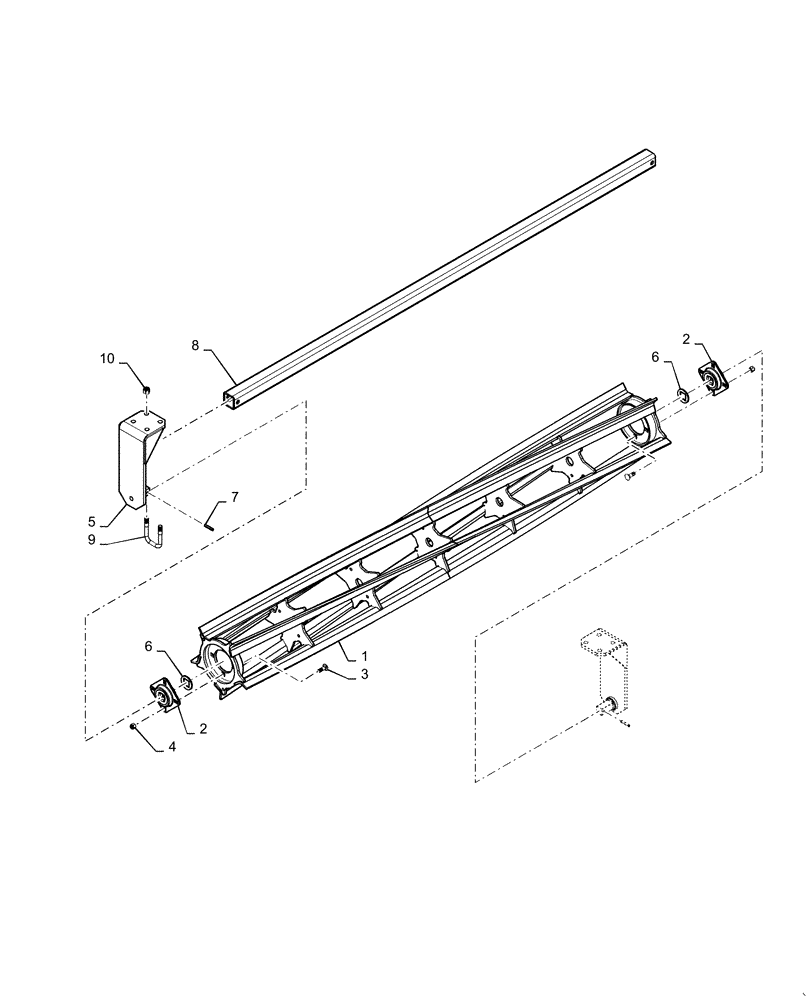

Запчасти Case IH ECOLO-TIGER 875 (75.200.AF[02]) - BASKET 5 BAR 96 INCH (75) - SOIL PREPARATION

1

87470079

BASKET

5 BAR, 96"

1шт.

2

47451691

BEARING CONE

greaseless

2шт.

3

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

8шт.

4

88871

NUT,1/2"-13, GC

8шт.

5

84327433

SPINDLE

2шт.

6

84151924

SHIM

2шт.

7

84221259

SLOTTED PIN

.312 X 1.750"

2шт.

8

87712237

REEL

Tube 96"

1шт.

9

87712238

U-BOLT

2.5" X 4"

4шт.

10

85700693

NUT,5/8" - 11, Gr C

8шт.
