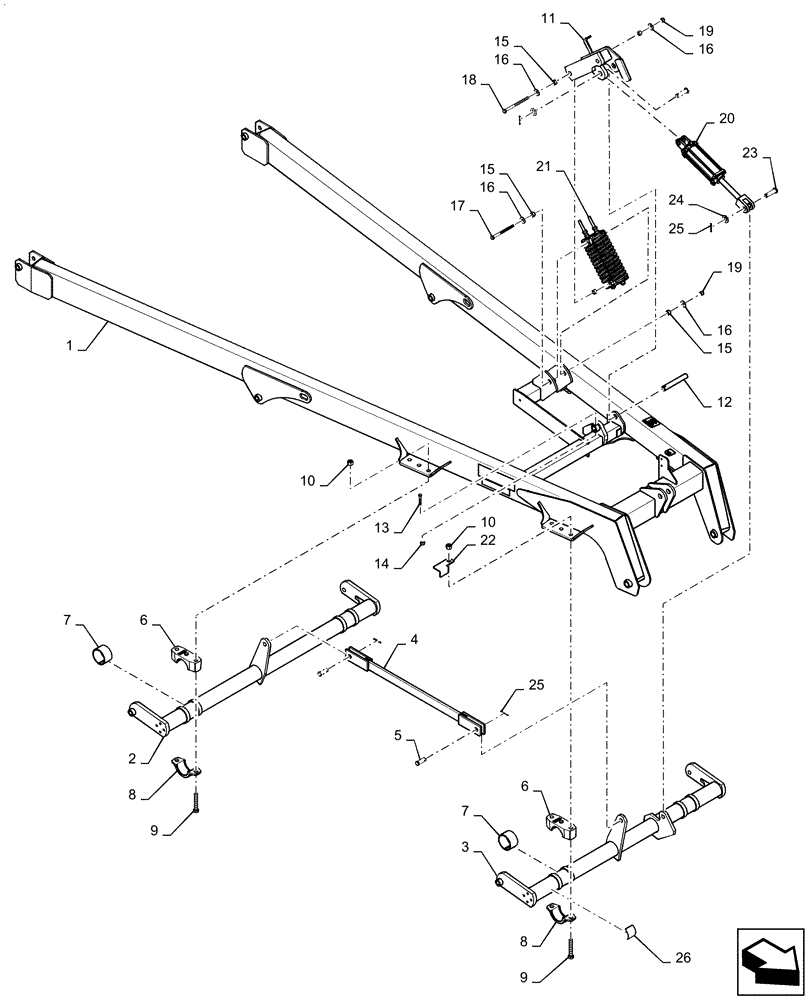

Запчасти Case IH ECOLO-TIGER 875 (39.100.AB[08]) - CARRIER FRAME 7 SHANK 14 FOOT (39) - FRAMES AND BALLASTING

1

47421269

FRAME

Carrier 14" 7 Shank With Decals

1шт.

2

47421298

ROCKSHAFT

Rear

1шт.

3

47442870

ROCKSHAFT

Front

1шт.

4

84401366

LINKAGE

Drag Rock Shaft

1шт.

5

14816201

SMALL PIN

1 X 1.95"

2шт.

6

87716561

CASTING

Base Disk

4шт.

7

84343736

BUSHING

UHMW

4шт.

8

87716562

CASTING

Clamp Cap Disk

4шт.

9

87019287

BOLT

.875 X 5.25

8шт.

10

87681198

NUT,Hex, 7/8"-9, 0.45 high

8шт.

11

47421774

PIVOT

Disk Spring Single

1шт.

12

14892066

PIN

Spring Pack

1шт.

13

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

14

280980

NUT,7/16"-14, GC

1шт.

15

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Plated

5шт.

16

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

17

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

1шт.

18

86507001

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

1шт.

19

85700693

NUT,5/8" - 11, Gr C

2шт.

20

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8" Stroke

1шт.

21

09900085

SPRING BOX

Shank Individual Disk

1шт.

21

87443458

CASTING

Spring Box Gang Disk

1шт.

22

47410048

POINTER

Carrier

1шт.

23

87735776

PIN,25.4mm OD x 111.5mm L

2шт.

24

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

25

88182

COTTER PIN,1/4" OD x 2" L

4шт.

26

18534258

DECAL

Depth Indicator

1шт.
