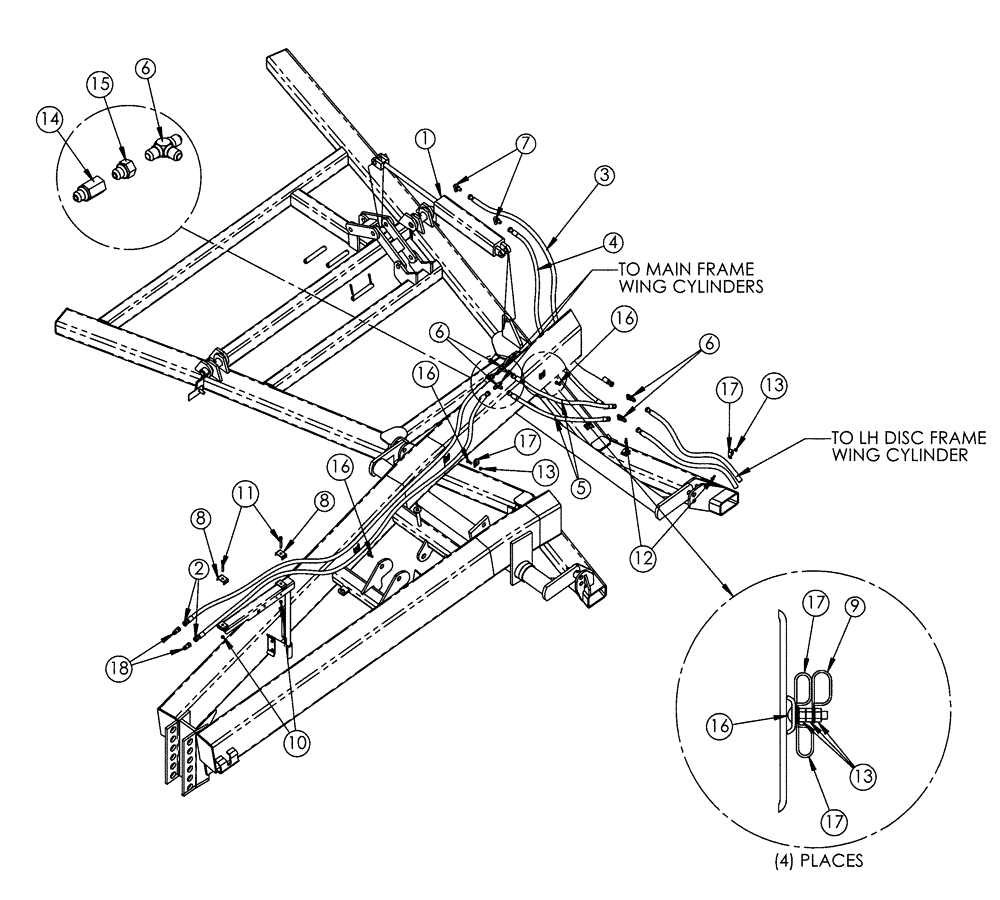

Запчасти Case IH 9300 (35.100.02) - DISC HYDRAULICS (08) - HYDRAULICS

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16, 3000 p.s.i.

2шт.

1

25330160R

REMAN-HYD CYLINDER

9300, ECOLO-TIGER DISK RIPPER, 3 x 16, 3000 p.s.i.

2шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

2

25610709

HYDRAULIC HOSE

3/8 x 233

2шт.

3

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

2шт.

4

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

2шт.

5

25600614

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R17

2шт.

6

218-594

TEE,3/4"-16, 37 Degree

4шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

8

06200125

HOSE CLAMP

2шт.

9

22510710

HOSE CLAMP

Cushioned, 1/2 ID, Main Lift

3шт.

10

86992213

NUT

3/8, NC, Stover

2шт.

11

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

12

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

13

86992213

NUT

3/8, NC, Stover

7шт.

14

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

15

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

2шт.

16

134-3

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 5, Full Thd

3шт.

17

22510700

HOSE CLAMP,15.86mm

Cushioned, 5/8 ID

7шт.

18

25705041

COUPLING

Male, ISO 3/4 SAEF, Hydraulic

2шт.
