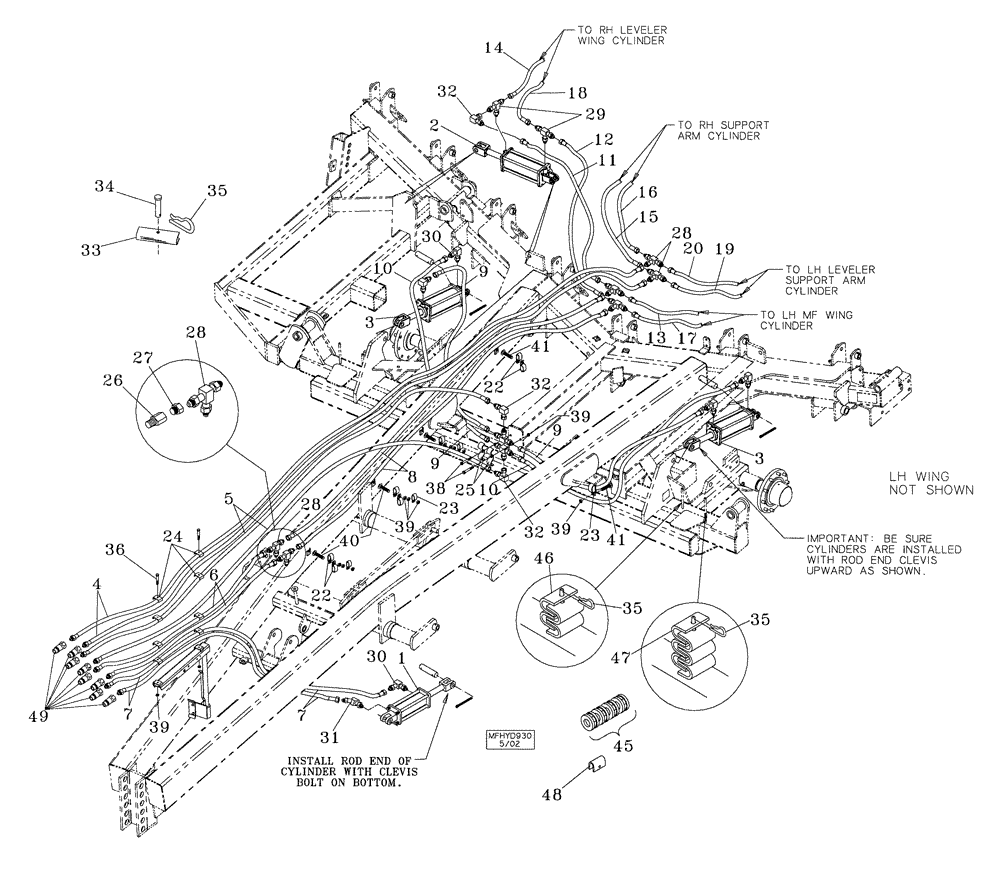

Запчасти Case IH 9300 (35.100.01) - MAIN FRAME HYDRAULICS (08) - HYDRAULICS

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, 3000 p.s.i.

1шт.

2

25335162

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16, 3000 p.s.i.

2шт.

3

25340123

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

4 x 12, 3000 p.s.i.

2шт.

3

25340123R

REMAN-HYD CYLINDER

9300 ECOLO-TIGER DISK RIPPER

2шт.

3

25340123C

CORE-HYD CYLINDER

Return Number

2шт.

4

25610701

HYDRAULIC HOSE

3/8 x 310

2шт.

5

25610849

HYDRAULIC HOSE,12.7mm ID x 6604mm L, SAE 100R17

1/2 x 260

2шт.

6

25610709

HYDRAULIC HOSE

3/8 x 233

2шт.

7

25610710

HYDRAULIC HOSE

3/8 x 164

2шт.

8

25600607

HYDRAULIC HOSE,0.38" ID x 76.00", SAE 100R17

2шт.

9

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

2шт.

10

25600735

HYDRAULIC HOSE,0.38" ID x 82.00", SAE 100R17

2шт.

11

25600643

HYDRAULIC HOSE,0.38" ID x 44.50", SAE 100R17

1шт.

12

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

1шт.

13

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

1шт.

14

25600692

HYDRAULIC HOSE,0.38" ID x 108.00", SAE 100R17

2шт.

15

25600607

HYDRAULIC HOSE,0.38" ID x 76.00", SAE 100R17

3шт.

16

25600720

HYDRAULIC HOSE,0.38" ID x 90.00", SAE 100R17

1шт.

17

25600662

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R17

1шт.

18

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

3/8 x 121

2шт.

19

25600726

HYDRAULIC HOSE,0.38" ID x 130.50", SAE 100R17

1шт.

20

25600716

HYDRAULIC HOSE,0.38" ID x 139.50", SAE 100R17

1шт.

22

22510700

HOSE CLAMP,15.86mm

5/8

12шт.

23

22510710

HOSE CLAMP

3/4

5шт.

24

06200125

HOSE CLAMP

8шт.

25

22530601

HOSE CLAMP

Double

2шт.

26

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

27

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

2шт.

28

218-594

TEE,3/4"-16, 37 Degree

8шт.

29

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

5шт.

31

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

32

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

4шт.

33

09967021

STOP

Cylinder Stop

2шт.

34

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8, Clevis

5шт.

35

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

8шт.

36

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

38

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

39

86992213

NUT

3/8, NC, Stover

17шт.

40

134-3

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 5, Full Thd

3шт.

41

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

5шт.

45

25800010

CYLINDER

Stroke Control, 1-1/4

1шт.

46

09900240W

KIT

Stroke Control, 1-1/2, Red

1шт.

47

09967003W

KIT

Stroke Control, Large, Red

1шт.

48

09650207

STAY

Cylinder

1шт.

49

25705041

COUPLING

Male ISO, 3/4 SAEF, Hydraulic

8шт.
