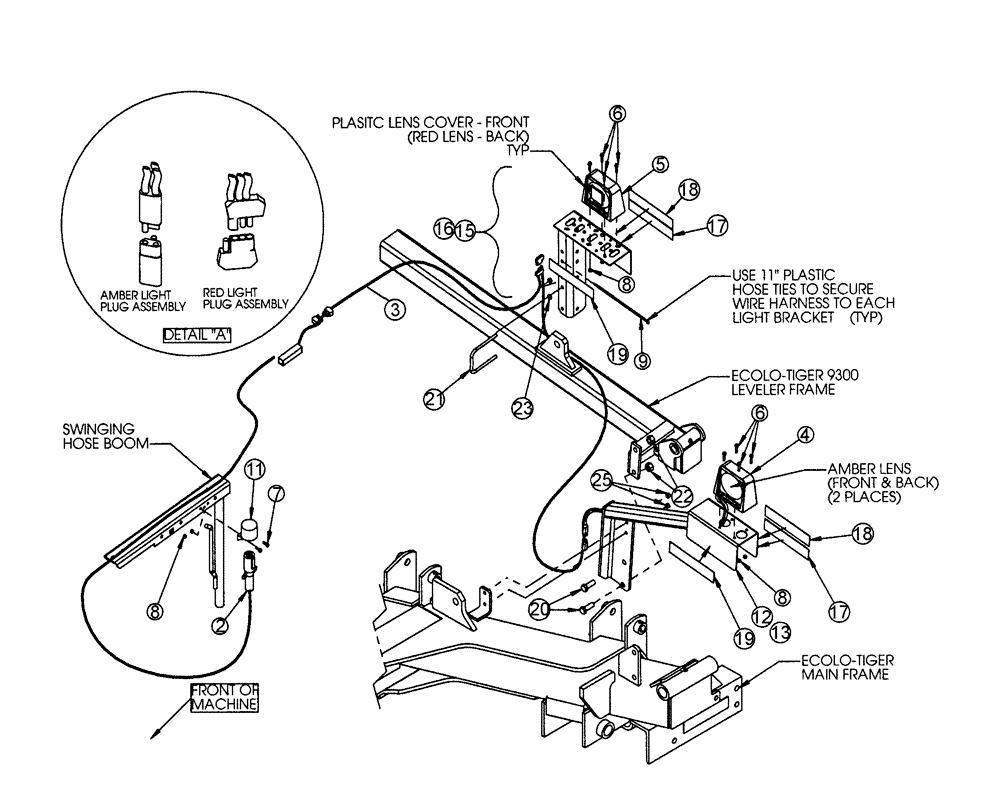

Запчасти Case IH 9300 (55.404.01) - WARNING AND TAILLIGHT KIT (04) - ELECTRICAL SYSTEMS

27603330

WARNING LIGHT

Kit, Inc. 2 - 11

1шт.

2

87446676

WIRE HARNESS

Front

1шт.

3

27602224

HARNESS

Rear

1шт.

4

27602201

LIGHT ASSY.

Amber

2шт.

5

27602202

LIGHT ASSY.

Red

2шт.

6

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

86992211

NUT

1/4, NC, Stover

18шт.

9

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 20, Tie

1шт.

11

27601214

HOLDER

Plug Storage

1шт.

12

87454251

BRACKET

Light Arm, Rh, Inc. 17 - 19

1шт.

16312085 is used to connect plate to mount

1шт.

13

87454250

BRACKET

Light Arm, Lh, Incl 17 - 19

1шт.

16312085 is used to connect plate to mount

1шт.

14

27602400

SUPPORT

Light Bracket, Short

2шт.

16312085 is used to connect plate to mount

1шт.

15

27602410

BRACKET

Light Assembly, Lh, Inc. 16 - 19, Short

1шт.

16312085 is used to connect plate to mount

1шт.

15

87328901

BRACKET

Light Assembly, Lh, Inc. 16 - 19, Short

1шт.

Used On 2007 And After Models

1шт.

15

27602415

BRACKET

Light Bracket, Rh, Inc. 16 - 19, Short

1шт.

16312085 is used to connect plate to mount

1шт.

15

87328899

BRACKET

Light Bracket, Rh, Inc. 16 - 19, Short

1шт.

Used On 2007 And After Models

1шт.

16

87328897

BRACKET

Light Bracket, Rh, Inc. 17 - 19, Long

1шт.

Used On 2007 And After Models

1шт.

16

87328898

BRACKET

Light Bracket, Lh, Inc. 17 - 19, Long

1шт.

17

311863A1

REFLECTOR

Red

4шт.

18

311865A1

REFLECTOR

Flourescent

4шт.

19

311864A1

REFLECTOR

Yellow

4шт.

20

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

21

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8 x 4 x 4

2шт.

22

85700693

NUT,5/8" - 11, Gr C

4шт.

23

86992213

NUT

3/8, Stover

4шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

87039402

NUT,3/8"-16, GB

2шт.
