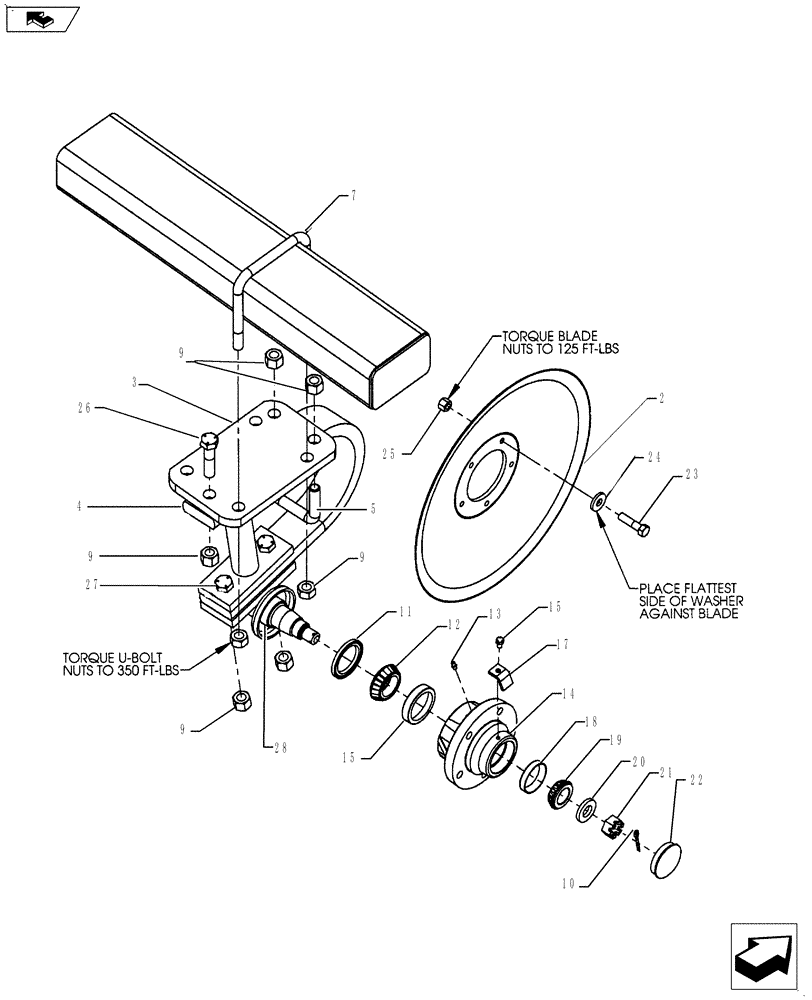

Запчасти Case IH 9300 (75.200.05) - CUSHION DISC MOUNT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

87577026

MOUNTING PARTS

Center Cushion Mount Assembly

1шт.

1

87577027

MOUNTING PARTS

Cushion Mount Assembly, Rh

1шт.

1

87577028

MOUNTING PARTS

Cushion Mount Assembly, Lh

1шт.

1

87577029

MOUNTING PARTS

Cushion Mount Assembly, Lh, No Stop, Used In Rear

1шт.

1

87577030

MOUNTING PARTS

Cushion Mount Assembly, Rh, No Stop, Used In Rear

1шт.

2

87443008

PLOW DISC

20, Blade

1шт.

2

87443010

PLOW DISC

22, Blade

1шт.

3

09987801

BRACKET

1шт.

16312085 is used to connect plate to mount

1шт.

3

87436346

PLATE, SUPPORT

Center Mount Only

1шт.

4

33090001

HANGER

Bearing, Painted

1шт.

5

16312085

U-BOLT

1шт.

7

87427186

U-BOLT

BOLT "U" 3/4 x 6.18

1шт.

9

280375

NUT,3/4"-10, GC

9шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

11

21932120

SEAL,53.98mm ID x 76.2mm OD x 6.35mm Thk

Retainer

1шт.

12

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625, Timken LM501349

1шт.

13

663558R1

BEARING CUP

2.892, Timken LM501310

1шт.

14

28705012

HUB ASSY.

With Cups

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

16

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

17

87541117

RETAINER,Dust Cap

Dust Cap

1шт.

18

651817R1

BEARING CUP

2.33, Timken LM67010

1шт.

19

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, Timken LM67048

1шт.

20

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

2шт.

21

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

22

28490001

HUB CAP

1шт.

23

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

5шт.

24

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16 x 1-3/8 OD, Special

5шт.

25

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

26

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

26

420-21248

PLOW BOLT,#3, 3/4" - 10 x 3", Gr 8

1шт.

27

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

27

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

For Use With Stop

2шт.

28

28199902

HUB ASSY.

& Spindle

1шт.
