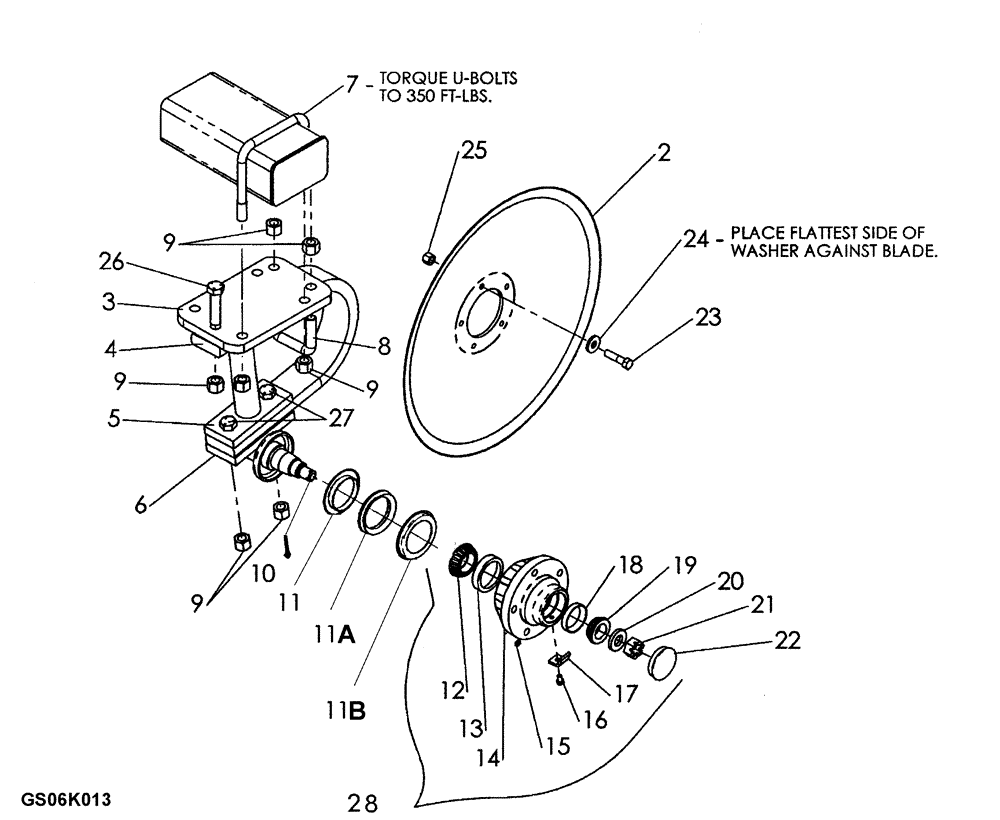

Запчасти Case IH 9300 (75.200.04) - CUSHION DISC MOUNT 2006 MODEL YEAR (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87577026
MOUNTING PARTS
Center Cushion Mount Assembly
1шт.
1
87577027
MOUNTING PARTS
Cushion Mount Assembly, Rh
1шт.
1
87577028
MOUNTING PARTS
Cushion Mount Assembly, Lh
1шт.
1
87577029
MOUNTING PARTS
Cushion Mount Assembly, Lh, No Stop, Used In Rear
1шт.
1
87577030
MOUNTING PARTS
Cushion Mount Assembly, Rh, No Stop, Used In Rear
1шт.
2
87443008
PLOW DISC
20, Blade
1шт.
2
87443010
PLOW DISC
22, Blade
1шт.
3
09987801
BRACKET
1шт.
3
87436346
PLATE, SUPPORT
Center Mount Only
1шт.
4
33090001
HANGER
Bearing, Painted
1шт.
5
09987805
STOP
Weldment, Front Disc Only
1шт.
6
09987820
SPINDLE
Assembly
1шт.
6
09987825
SPINDLE
Center Assembly
1шт.
7
87427186
U-BOLT
BOLT "U" 3/4 x 6.18
1шт.
8
16312085
U-BOLT
3/4 x 3.06 x 3
1шт.
9
280375
NUT,3/4"-10, GC
9шт.
10
432-1024
COTTER PIN,5/32" x 1 1/2"
1шт.
11
87415558
SEAL,53.87mm ID x 78.26mm OD x 1.52mm Thk
Retainer
1шт.
11a
87415557
SEAL
1шт.
11b
87415559
SEAL,55.63mm ID x 82.55mm OD x 1.02mm Thk
Counter Face
1шт.
12
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
1.625, Timken LM501349
1шт.
13
663558R1
BEARING CUP
2.892, Timken LM501310
1шт.
14
28705012
HUB ASSY.
With Cups
1шт.
15
219-87
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
16
413-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
1шт.
17
87541117
RETAINER,Dust Cap
1шт.
20
17915000
WASHER
7/8, H.T. Black
1шт.
21
425-1314
SLOTTED NUT,7/8"-14, G5
1шт.
22
28490001
HUB CAP
1шт.
23
426-832
BOLT,Hex, 1/2" - 13 x 2", Gr 8
5шт.
24
17409010
WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk
9/16 x 1-3/8 OD, Special
5шт.
25
86992215
LOCK NUT,1/2"-13, GC
Stover
1шт.
26
413-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
1шт.
26
420-21248
PLOW BOLT,#3, 3/4" - 10 x 3", Gr 8
1шт.
27
413-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5
2шт.
27
413-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
Use With Stop
2шт.
28
28199902
HUB ASSY.
Complete
1шт.
Выбрано товаров: 39
