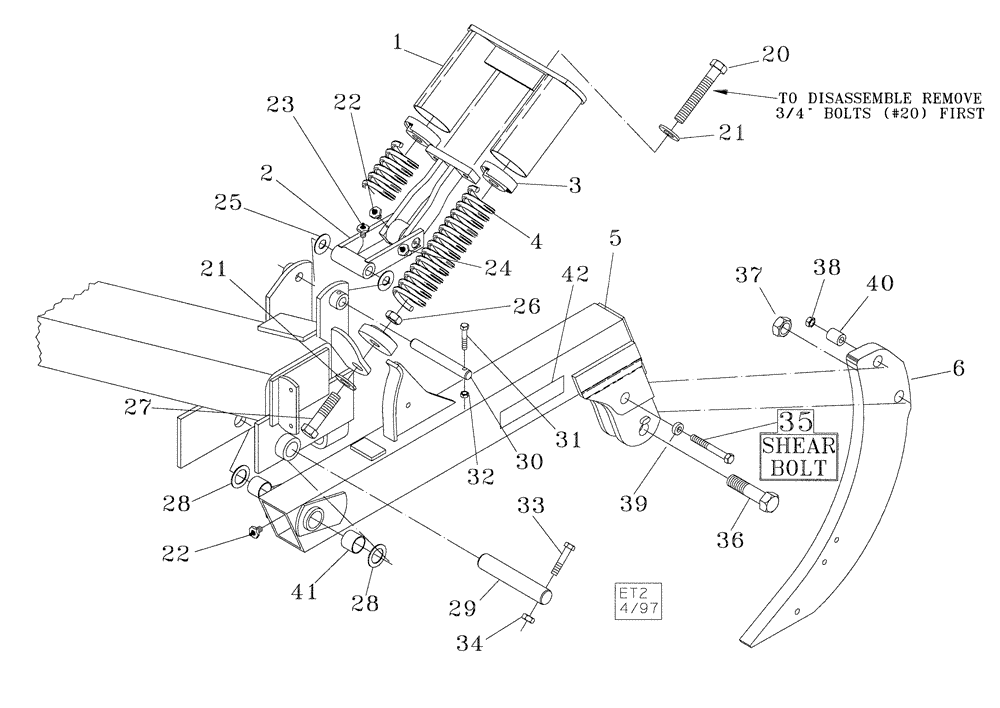

Запчасти Case IH 9300 (75.200.02) - AUTO-RESET ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

09984675

SPRING BOX

Auto-Reset Canister

1шт.

2

09984650

LINK/SHACKLE

Auto-Reset

1шт.

3

20090090

SPRING BOX

Casting

4шт.

4

24162501

COIL SPRING

Compression

2шт.

5

09984645

BEAM ASSY.

Inc. 39 And 41

1шт.

6

09983476

SHANK

Hard Surfaced, Inc. 40

1шт.

20

16901225

CAPSCREW,Hex, 3/4" - 10 x 6 1/2", Gr 5

3/4 x 6-1/2, NC, Hex, gd 5

2шт.

21

17413011

WASHER

3/4, Standard

4шт.

22

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

Self Tapping

1шт.

24

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

Self Tapping

1шт.

25

17616020

WASHER

1, Dia., Machine, 14 ga

2шт.

26

425-1012

NUT,3/4"-10, G5

1шт.

27

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

28

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8, Dia, 14 ga

2шт.

29

14892671

SPECIAL PIN,41.27mm OD x 230.12mm L

1-5/8, Dia, H.T.

1шт.

30

14891665

HITCH PIN

1, Dia

1шт.

31

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

32

86992213

NUT

3/8, NC, Stover

1шт.

33

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

34

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

35

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

36

16902016

BOLT

1-1/4 x 4, NC Hex, gd 5

1шт.

37

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

38

85700693

NUT,5/8" - 11, Gr C

1шт.

39

44006520

BUSHING

1-5/16

2шт.

40

44006530

BUSHING

1-1/2

1шт.

41

44016250

SPACER

1-5/8

2шт.

42

311864A1

REFLECTOR

Yellow

2шт.

43

09900099

BUCKET TOOTH SHANK

A/R Assembly, Not Shown

1шт.
