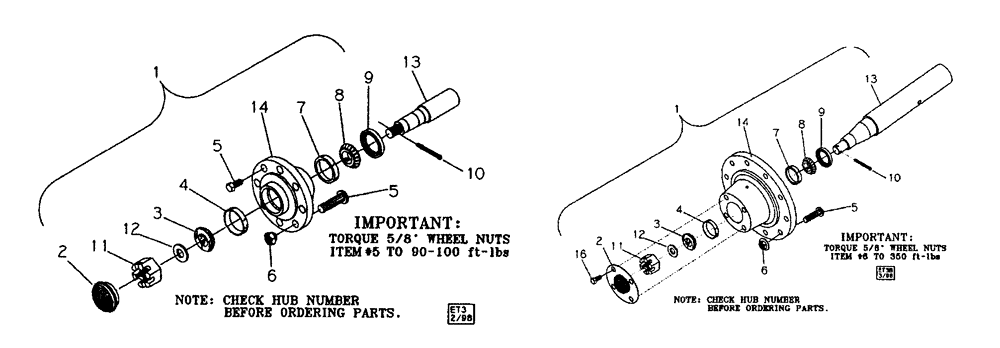

Запчасти Case IH 9300 (44.100.01) - HUB AND SPINDLE ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

1

28178300

HUB ASSY.

783, 6-Bolt, Inc. 2 - 9, Gauge Wheels

1шт.

1

NA

NOT SERVICED

871, 10-Bolt, Inc 2 - 9, Transport Wheels, 28187101

1шт.

2

28477700

HUB CAP

Gauge Wheels

1шт.

2

28487101

HUB CAP

Cap, Transport Wheels

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, Timken LM67048, Gauge Wheels

1шт.

3

21871750

ROLLER BEARING,1.75" ID

1.75, Timken 460, Transport Wheels

1шт.

4

651817R1

BEARING CUP

2.33 OD, Timken LM67010, Gauge Wheels

1шт.

4

21884250

BEARING CUP,107.95mm OD

4.25 OD, Timken 453A, Transport Wheels

1шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2 x 1, NF, Hex, gd 5, Gauge Wheels

6шт.

5

16412418

STUD

3/4 x 2-9/16, NF, gd 8, Transport Wheels

10шт.

6

14091203

NUT

3/4, NF, Flanged, Transport Wheels

10шт.

7

663558R1

BEARING CUP

2.89 OD, Timken LM501310, Gauge Wheels

1шт.

7

21884430

CUP

4.4375 OD, Timken 39520, Transport Wheels

1шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625, Timken LM501349, Gauge Wheels

1шт.

8

21872505

ROLLER BEARING,63.5 mm ID

2.50, Timken 39585, Transport Wheels

1шт.

9

145769C91

OIL SEAL

1.875 ID x 3.005 OD, CR18823, Gauge Wheels

1шт.

9

21933000

SEAL

3.00, CR30087, Transport Wheels

1шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

Gauge Wheels

1шт.

10

432-1232

COTTER PIN,3/16" OD x 2" L

Transport Wheels

1шт.

11

425-1314

SLOTTED NUT,7/8"-14, G5

Gauge Wheels

1шт.

11

87355811

SLOTTED NUT

Slotted, Transport Wheels

1шт.

12

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

Gauge Wheels

1шт.

12

17952632

WASHER

3.25 Dia, Special, Heavy, Transport Wheels

1шт.

13

28378305

SPINDLE

2.00, Straight, Gauge Wheels

1шт.

13

28387101

SPINDLE

Q871, Drilled, Transport Wheels

1шт.

14

28278300

HUB

783, With Cups, Gauge Wheels

1шт.

14

28787101

HUB ASSY.

Q871, With Cups, Tranport Wheels

1шт.

15

28078305

HUB ASSY.

783, Gauge Wheels

1шт.

15

28087102

HUB ASSY.

Q871, Transport Wheels

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.
