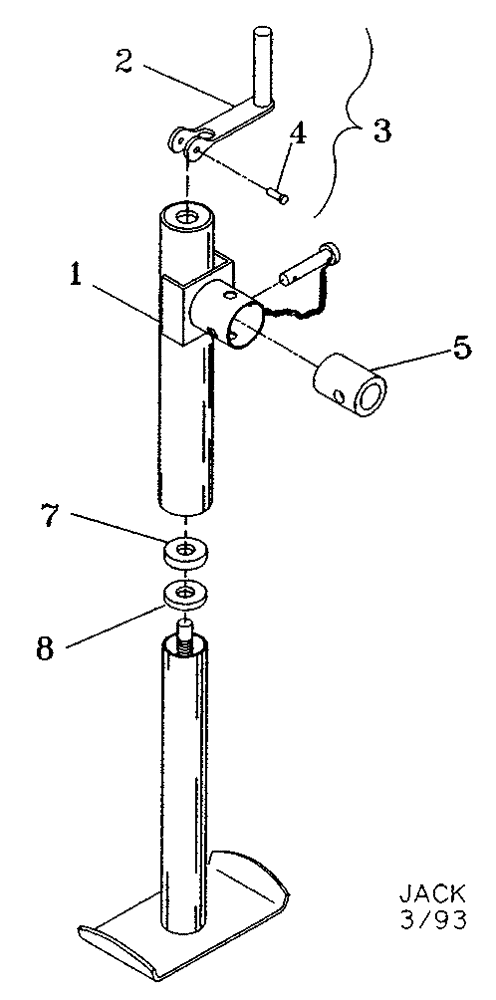

Запчасти Case IH 9300 (39.110.02) - JACK ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

32230000

JACK

5000 lb

1шт.

2

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

3

32230100

PACKAGE

Handle Replacment, Inc. 2, 4 , And 9

1шт.

4

NSS

NOT SOLD SEPARAT

1/4 x 1, NC, Standard, Hex Bolt

1шт.

5

09311040

TUBE,1.3" ID, 2" OD, 2.62" Length

Mounting

1шт.

7

NSS

NOT SOLD SEPARAT

Thrust Bearing

1шт.

8

NSS

NOT SOLD SEPARAT

Thrust Washer

1шт.

9

NSS

NOT SOLD SEPARAT

1/4, Lock Nut

1шт.
