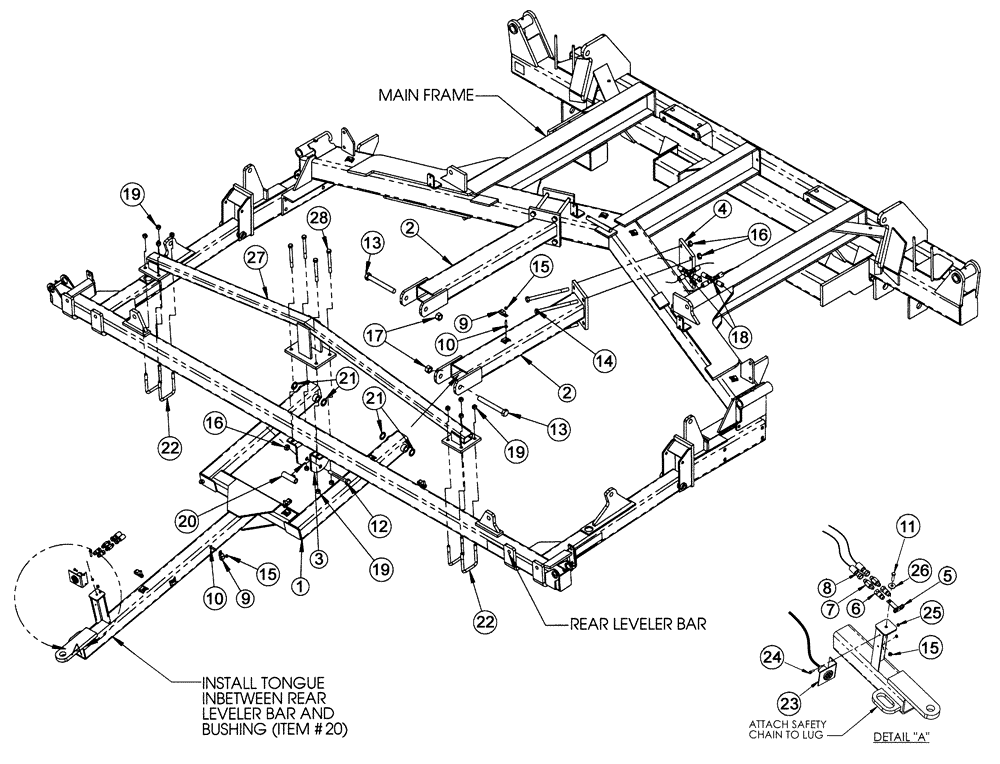

Запчасти Case IH 9300 (39.110.01) - REAR HITCH (09) - CHASSIS/ATTACHMENTS

1

09967720

BRACKET

Rear Hitch Weldment

1шт.

2

09967730

BRACKET

Arm Weldment

2шт.

3

09967727

BAR ASSY.

Guide, Rear Hitch

2шт.

4

09967725

CAP

Plate With Holes

2шт.

5

25705012

COUPLING

Breakaway Frame

1шт.

6

25705021

COUPLING

Female

2шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adapter

2шт.

8

25600752

HYDRAULIC HOSE,9.68mm ID x 161mm L

2шт.

9

22510700

HOSE CLAMP,15.86mm

Cushioned, 5/8

5шт.

10

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

5шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

12

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

13

413-16136

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

2шт.

14

16901245

BOLT

3.4 x 10-1/2, NC

8шт.

15

86992213

NUT

3/8, NC

6шт.

16

425-1012

NUT,3/4"-10, G5

9шт.

17

86992219

LOCK NUT

1, NC

2шт.

18

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

19

425-1010

NUT,5/8"-11, G5

12шт.

20

09967728

SPACER

Bushings, Rear Hitch

1шт.

21

17616011

BUSHING

Machinery

8шт.

22

87427161

U-BOLT

BOLT "U" 5/8 x 4 x 5-1/2

4шт.

23

87436249

HARNESS

Adapter

1шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

25

86992211

NUT

1/4, NC

2шт.

26

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

27

87398411

TRUSS ROD

Truss

1шт.

28

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

4шт.

29

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP Hose Tie, 20, Not Shown

1шт.

30

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Hose Tie, 30, Not Shown

1шт.
