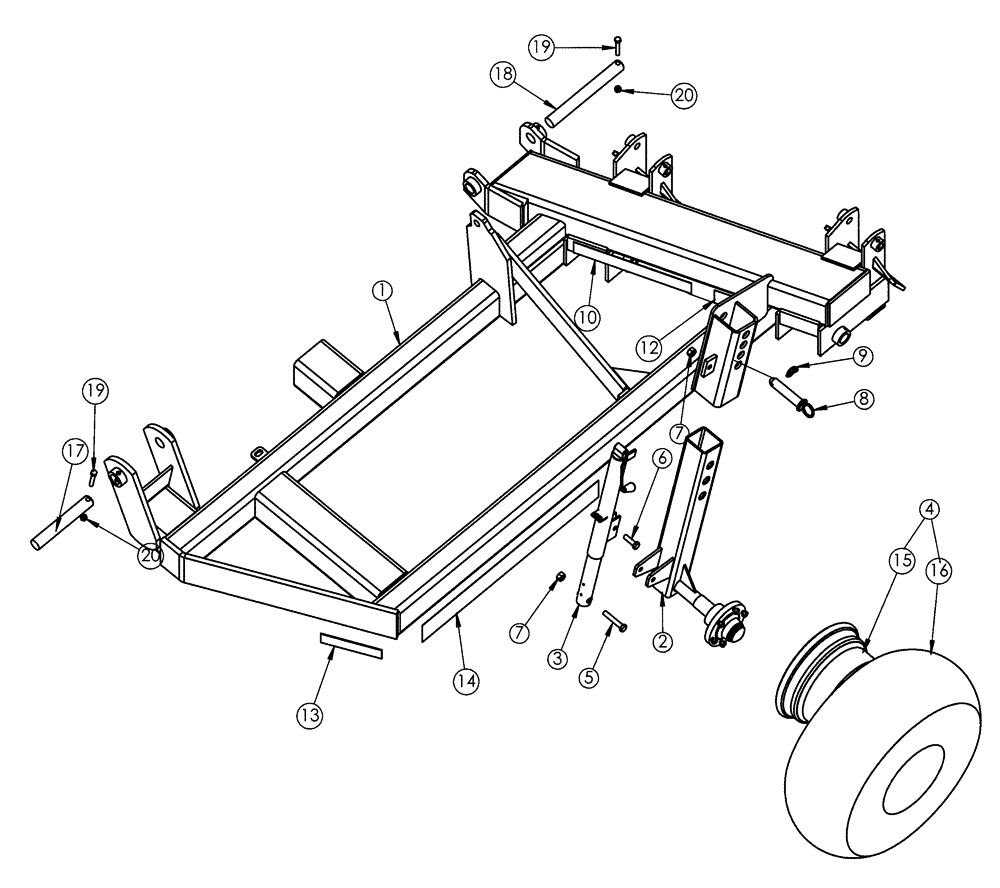

Запчасти Case IH 9300 (39.100.02) - MAIN FRAME WING (09) - CHASSIS/ATTACHMENTS

1

87409605

BAR ASSY.

Main Frame, Lh, Shown

1шт.

1

87409608

BAR ASSY.

Main Frame, Rh

1шт.

2

09967080

BRACKET

Gauge Wheel, Lh, 783 Hub

1шт.

2

09967085

BRACKET

Gauge Wheel, Rh, 783 Hub

1шт.

3

32253000

JACK ASSY.

5000 lb, Gauge Wheel

1шт.

4

10010254

WHEEL ASSY.

12.5L x 15 SL, 8-Ply, Silver

1шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

6

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

7

85700693

NUT,5/8" - 11, Gr C

2шт.

8

14820421

CLEVIS

1-1/4 x 5-1/4, Pin

1шт.

9

A30338

PIN

1/4 x 1-3/4, Klik

1шт.

10

18534307

DECAL

Helping Plants Thrive

1шт.

13

311864A1

REFLECTOR

Yellow

1шт.

14

18532035

DECAL

Tiger Stripe

1шт.

15

10110254

WHEEL ASSY.

10 x 15, 6-Hole, Silver

1шт.

16

NSS

NOT SOLD SEPARAT

12.5 x 15, 8-Ply Tire, 1980754C1

1шт.

17

14892685

SPECIAL PIN

1-5/8 x 10.88

1шт.

18

14892692

SPECIAL PIN

1-5/8 x 14.12

1шт.

19

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

20

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.
