Запчасти Case IH 9300 (35.100.04) - DISC LEVELER HYDRAULICS (08) - HYDRAULICS

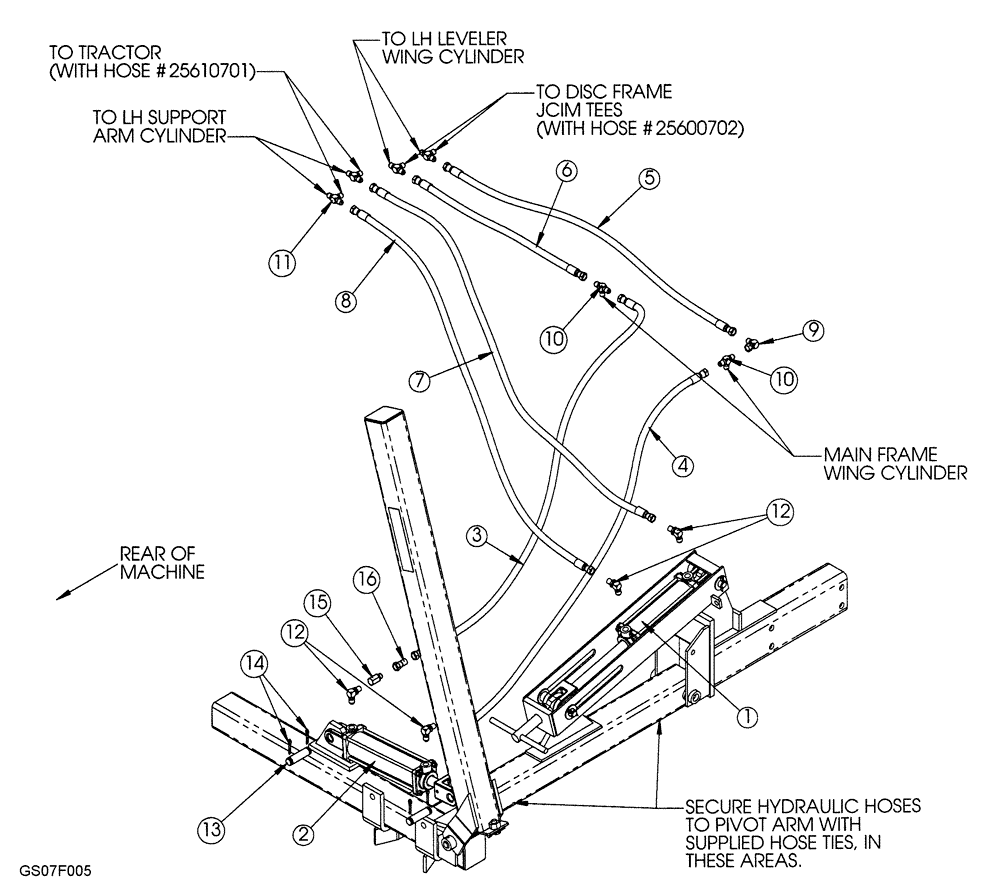

Схема запчастей Case IH 9300 - (35.100.04) - DISC LEVELER HYDRAULICS (08) - HYDRAULICS
12
16
9
3
10
10
6
13
7
2
15
11
14
4
12
8
1
5

Артикул

Название

Примечание

Количество

1

25330083

CYLINDER ASSY.

3 x 8, 3000 P.S.I.

2шт.

2

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10, 3000 P.S.I.

2шт.

2

25330101R

REMAN-HYD CYLINDER

9300 DMI ECOLO-TIGER DISK RIPPER, 3000 P.S.I.

2шт.

2

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

3

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

3/8 x 121

2шт.

4

25600692

HYDRAULIC HOSE,0.38" ID x 108.00", SAE 100R17

2шт.

5

25600643

HYDRAULIC HOSE,0.38" ID x 44.50", SAE 100R17

RH

1шт.

5

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

LH

1шт.

6

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

RH

1шт.

6

25600662

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R17

LH

1шт.

7

25600607

HYDRAULIC HOSE,0.38" ID x 76.00", SAE 100R17

RH

1шт.

7

25600726

HYDRAULIC HOSE,0.38" ID x 130.50", SAE 100R17

LH

1шт.

8

25600720

HYDRAULIC HOSE,0.38" ID x 90.00", SAE 100R17

RH

1шт.

8

25600716

HYDRAULIC HOSE,0.38" ID x 139.50", SAE 100R17

LH

1шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

10

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

11

218-594

TEE,3/4"-16, 37 Degree

4шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

8шт.

13

25890100

KIT

1, Bag of Parts

2шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

8шт.

15

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

2шт.

16

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

17

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 20, Tie

1шт.

18

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

Выбрано товаров: 24
