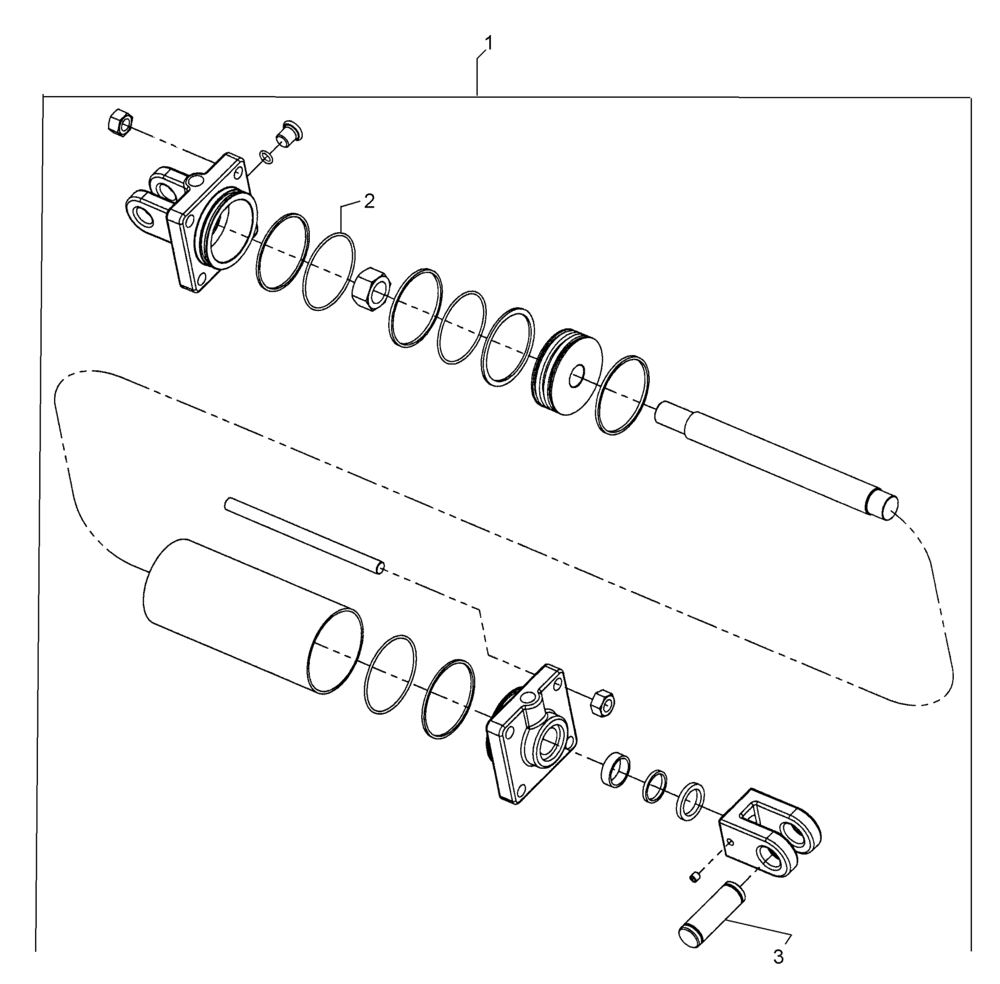

Запчасти Case IH 9300 (35.100.03) - HYDRAULIC CYLINDER ASSEMBLY (08) - HYDRAULICS

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, 20-1/4 Closed, Disc Lift

1шт.

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16, 26-1/4 Closed, Disc Fold

1шт.

1

25330160R

REMAN-HYD CYLINDER

9300, DMI ECOLO-TIGER DISK RIPPER, 3 x 16, 26-1/4 Closed, Disc Fold

1шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

1шт.

1

25335162

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16, 26-1/4 Closed, Main Frame Wing Fold

1шт.

1

25340123

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke

4 x 12, 22-1/4 Closed, Main Lift

1шт.

1

25340123R

REMAN-HYD CYLINDER

9300 DMI ECOLO TIGER DISK RIPPER

1шт.

1

25340123C

CORE-HYD CYLINDER

Return Number

1шт.

1

25330083

CYLINDER ASSY.

3 x 8, With Stop, 20-1/4 Closed, Disc Leveler Lift

1шт.

1

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10, 20-1/4 Closed, Disc Leveler Wing Lift

1шт.

1

25330101R

REMAN-HYD CYLINDER

9300 DMI ECOLO-TIGER DISK RIPPER, Disc Leveler Wing Lift

1шт.

1

25330101C

CORE-HYD CYLINDER

Return Number

1шт.

2

25833007

SEAL KIT

3, Disc Lift, Disc Fold, Disc Leveler, And Disc Leveler Wing Lift

1шт.

2

25833527

SEAL KIT

3-1/2, Main Frame Wing Fold

1шт.

2

25834024

SEAL KIT

4, Main Lift

1шт.

3

25890100

KIT

1, Bag Of Parts, Disc Lift, Disc Fold, And Mainframe Wing Fold

1шт.

3

14820241

CLEVIS

1-1/4 x 3, Main Lift

1шт.
