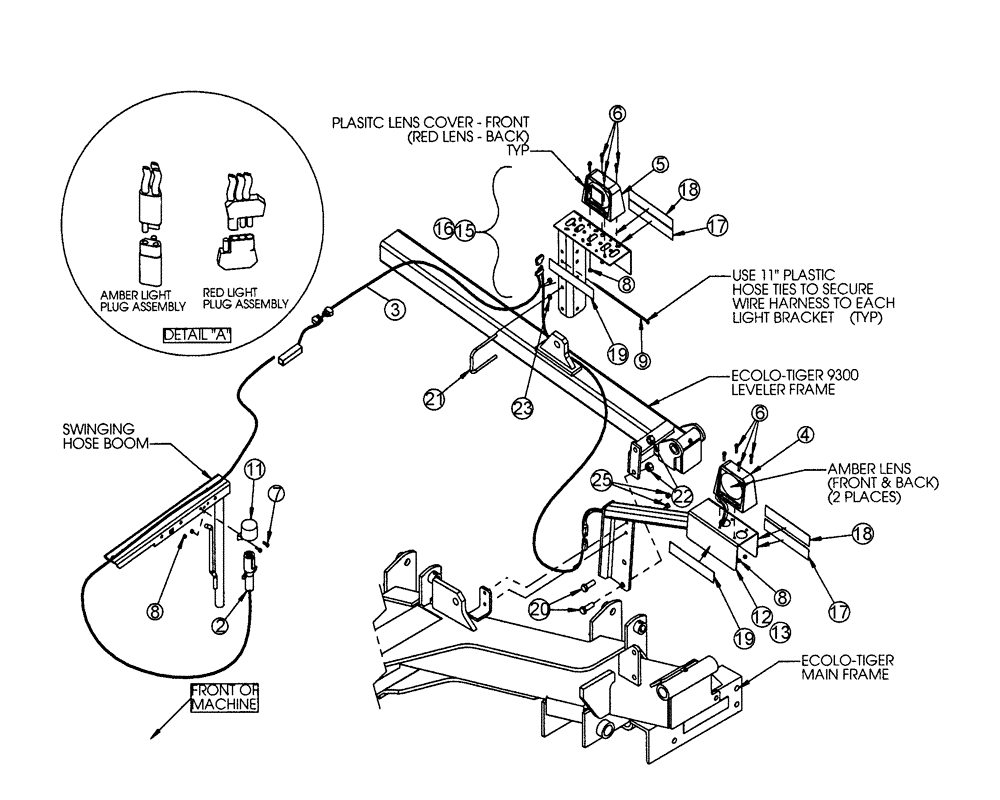

Запчасти Case IH 9300 (55.404.01) - WARNING AND TAILLIGHT KIT (04) - ELECTRICAL SYSTEMS

27603330

WARNING LIGHT

Kit, Inc. 2 - 11

1шт.

2

87446676

WIRE HARNESS

Front

1шт.

3

27602224

HARNESS

Rear

1шт.

4

27602201

LIGHT ASSY.

Amber

2шт.

5

27602202

LIGHT ASSY.

Red

2шт.

6

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

86992211

NUT

1/4, NC, Stover

18шт.

9

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 20, Tie

1шт.

11

27601214

HOLDER

Plug Storage

1шт.

12

87454251

BRACKET

Light Arm, Rh, Inc. 17 - 19

1шт.

Used On 2006 And Prior Models

1шт.

13

87454250

BRACKET

Light Arm, Lh, Incl 17 - 19

1шт.

Used On 2006 And Prior Models

1шт.

14

27602400

SUPPORT

Light Bracket, Short

2шт.

Used On 2006 And Prior Models

1шт.

15

27602410

BRACKET

Light Assembly, Lh, Inc. 16 - 19, Short

1шт.

Used On 2006 And Prior Models

1шт.

15

87328901

BRACKET

Light Assembly, Lh, Inc. 16 - 19, Short

1шт.

Used On 2007 And After Models

1шт.

15

27602415

BRACKET

Light Bracket, Rh, Inc. 16 - 19, Short

1шт.

Used On 2006 And Prior Models

1шт.

15

87328899

BRACKET

Light Bracket, Rh, Inc. 16 - 19, Short

1шт.

Used On 2007 And After Models

1шт.

16

87328897

BRACKET

Light Bracket, Rh, Inc. 17 - 19, Long

1шт.

Used On 2007 And After Models

1шт.

16

87328898

BRACKET

Light Bracket, Lh, Inc. 17 - 19, Long

1шт.

17

311863A1

REFLECTOR

Red

4шт.

18

311865A1

REFLECTOR

Flourescent

4шт.

19

311864A1

REFLECTOR

Yellow

4шт.

20

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

21

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8 x 4 x 4

2шт.

22

85700693

NUT,5/8" - 11, Gr C

4шт.

23

86992213

NUT

3/8, Stover

4шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

87039402

NUT,3/8"-16, GB

2шт.
