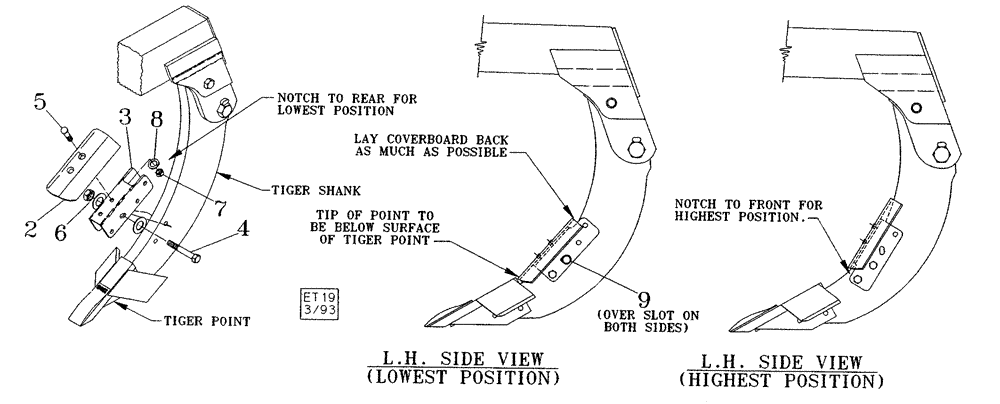

Запчасти Case IH 9300 (75.200.08) - 4 COVERING ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

09990040

MOLDBOARD

4, Covering Attachement Complete

1шт.

2

33310076

LANDSIDE

4, Covering With Hardware

1шт.

3

09965000

BRACKET

1-1/2 Shank

1шт.

3

87442609

BRACKET

1-1/4 Shank

1шт.

4

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

5

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

2шт.

7

425-107

NUT,7/16"-14, G5

2шт.

8

81547

LOCK WASHER,7/16"

2шт.

9

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.
