Запчасти Case IH 9300 (75.200.07) - 6 AND 8 COVERING ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

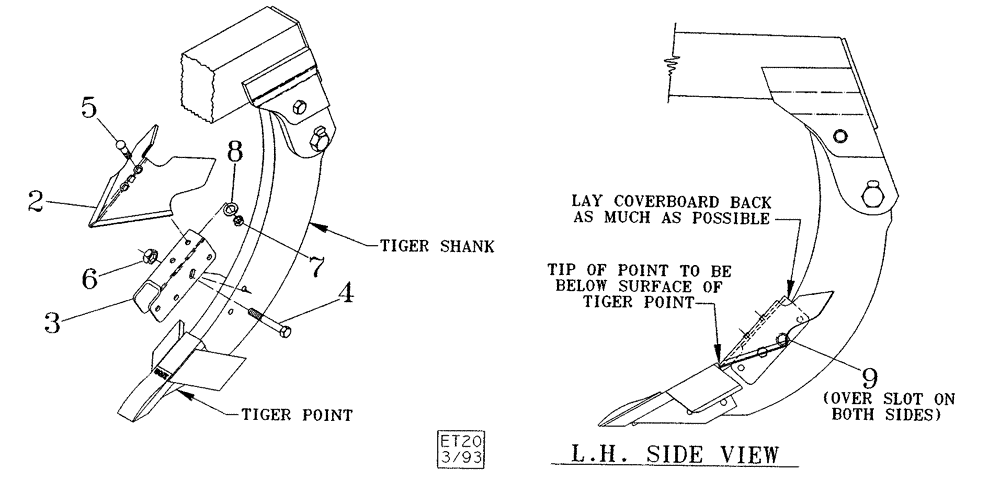

Схема запчастей Case IH 9300 - (75.200.07) - 6 AND 8 COVERING ATTACHMENTS (09) - CHASSIS/ATTACHMENTS
9
6
2
7
4
3
8
5

Артикул

Название

Примечание

Количество

1

09990035

MOLDBOARD

6, Covering Attachment

1шт.

1

09990030

MOLDBOARD

8, Covering Attachment

1шт.

2

33310081

LANDSIDE

6, Covering Attachment With Hardware

1шт.

2

33310070

MOLDBOARD

8, Covering Attachment With Hardware

1шт.

3

09965000

BRACKET

1-1/2 Shank

1шт.

3

87442609

BRACKET

1-1/4 Shank

1шт.

4

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

5

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

2шт.

7

425-107

NUT,7/16"-14, G5

2шт.

8

81547

LOCK WASHER,7/16"

2шт.

16312085 is used to connect plate to mount

1шт.

9

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

Выбрано товаров: 13
