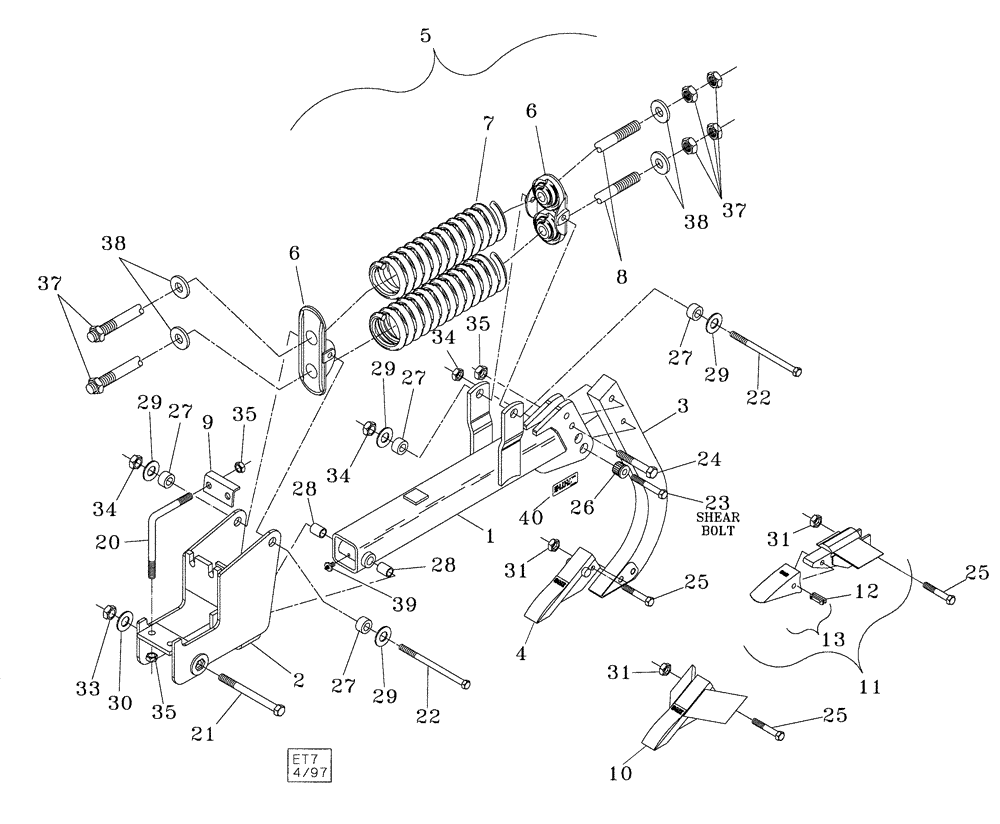

Запчасти Case IH 9300 (75.200.06) - LEAD SHANK ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

09984810

BAR ASSY.

Lead Shank, Beam

1шт.

2

09984820

SHANK

Mount

1шт.

3

33010010

SHANK

Heat Treated

1шт.

4

87460075

POINT RIPPER SHANK

1шт.

16312085 is used to connect plate to mount

1шт.

5

09984815

SPRING

Assembly

1шт.

6

20090133

HINGE

Double, Casting

2шт.

7

24162506

SPRING

Compression

2шт.

8

16510720

ROD

5/8, Threaded

2шт.

9

09561200

PLATE

1шт.

10

87460070

POINT RIPPER SHANK

7, Tiger

1шт.

16312085 is used to connect plate to mount

1шт.

11

87460158

POINT RIPPER SHANK

7, Replacable Tip Tiger

1шт.

16312085 is used to connect plate to mount

1шт.

12

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex

1шт.

13

87412311

TIP

Replacable

1шт.

14

09900012

SHANK

Complete Lead, Less Point

1шт.

20

87427193

SPECIAL BOLT

3/4, NC x 7-9/16, Square

2шт.

21

16901435

BOLT

7/8 x 7-3/4, NC, Hex, gd 5

1шт.

22

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/2, NC, Hex, gd 5

2шт.

23

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Shear

1шт.

24

16901215

BOLT

3/4 x 3-3/4, NC, A325

1шт.

25

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

26

44006511

BUSHING

5/8, Serrated, Painted

4шт.

27

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T., Painted

2шт.

28

51200158

BUSHING,22.72mm ID x 29.08mm OD x 38.1mm L

7/8, ID, Hardened

2шт.

29

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard

4шт.

30

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8, ID

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

1шт.

33

85700693

NUT,5/8" - 11, Gr C

1шт.

34

425-1010

NUT,5/8"-11, G5

3шт.

35

425-1012

NUT,3/4"-10, G5

5шт.

37

25-1010

NUT,5/8"-11, G5

6шт.

38

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

4шт.

39

219-86

LUBE NIPPLE,1/8" NPTF

Self-Tapping

1шт.

40

18534233

DECAL

Shear Bolt, Obsolete

1шт.
