Запчасти Case IH 9300 (75.200.03) - SHEAR BOLT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

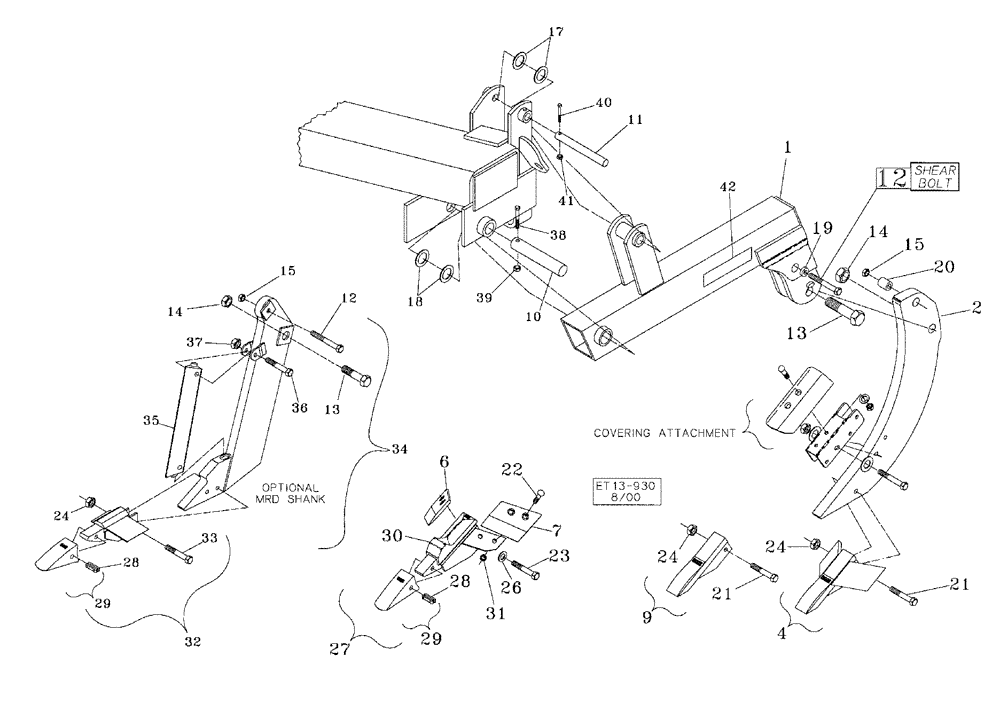

Схема запчастей Case IH 9300 - (75.200.03) - SHEAR BOLT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
38
28
41
24
15
20
33
35
18
42
24
24
30
28
21
1
4
17
12
6
36
2
9
12
34
40
11
22
31
19
14
7
29
23
13
27
29
10
21
15
26
39
14
32
37
13

Артикул

Название

Примечание

Количество

1

09967360

BEAM ASSY.

Shear Bolt, Less Shank

1шт.

2

09983476

SHANK

Hard Surfaced, Inc. 20

1шт.

4

87460074

POINT RIPPER SHANK

7, Tiger Assembly

1шт.

4

87460072

POINT RIPPER SHANK

10, Tiger Assembly

1шт.

6

09907002

FRAME

Rh, Wing, Inc. 22 And 24

1шт.

7

09907003

FRAME

Lh, Wing, Inc. 22 And 24

1шт.

9

87460071

POINT RIPPER SHANK

2, Straight Assembly

1шт.

10

14892671

SPECIAL PIN,41.27mm OD x 230.12mm L

1-5/8

1шт.

11

14891665

HITCH PIN

1

1шт.

12

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

13

16902016

BOLT

1-1/4 x 4, NC, Hex, gd 5

1шт.

14

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

15

85700693

NUT,5/8" - 11, Gr C

1шт.

16

25-1620

NUT,1 1/4"-7, G5, Hvy

2шт.

17

17616020

WASHER

1, Machine

2шт.

18

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8, Machine, 10 ga

2шт.

19

44006520

BUSHING

1-5/16

2шт.

20

44006530

BUSHING

1-1/2

1шт.

21

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

22

16208065

PLOW BOLT

1/2 x 1-1/2, NC

4шт.

23

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

25

425-168

NUT,1/2"-13, G5, Hvy

1шт.

26

495-21056

WASHER,1/2"

Standard

1шт.

27

87460159

POINT RIPPER SHANK

Replacable Tip Tiger

1шт.

28

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex

1шт.

29

87412311

TIP

Replaceable, Inc. 28

1шт.

30

87460073

POINT RIPPER SHANK

Replacable Point Base, Inc. 23, 25, And 26

1шт.

31

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

32

87460158

POINT RIPPER SHANK

7, Replaceable Tip Assembly

1шт.

33

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

34

09983485

SHANK

MRD, Assembly, Inc. 35 - 37

1шт.

35

09581761

BAR ASSY.

Wedge, MRD

1шт.

36

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

37

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

38

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

39

86992213

NUT

3/8, Stover

1шт.

40

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

41

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

42

311864A1

REFLECTOR

Yellow

2шт.

Выбрано товаров: 40
