Запчасти Case IH 9300 (75.200.01) - DISC ATTACHMENT (09) - CHASSIS/ATTACHMENTS

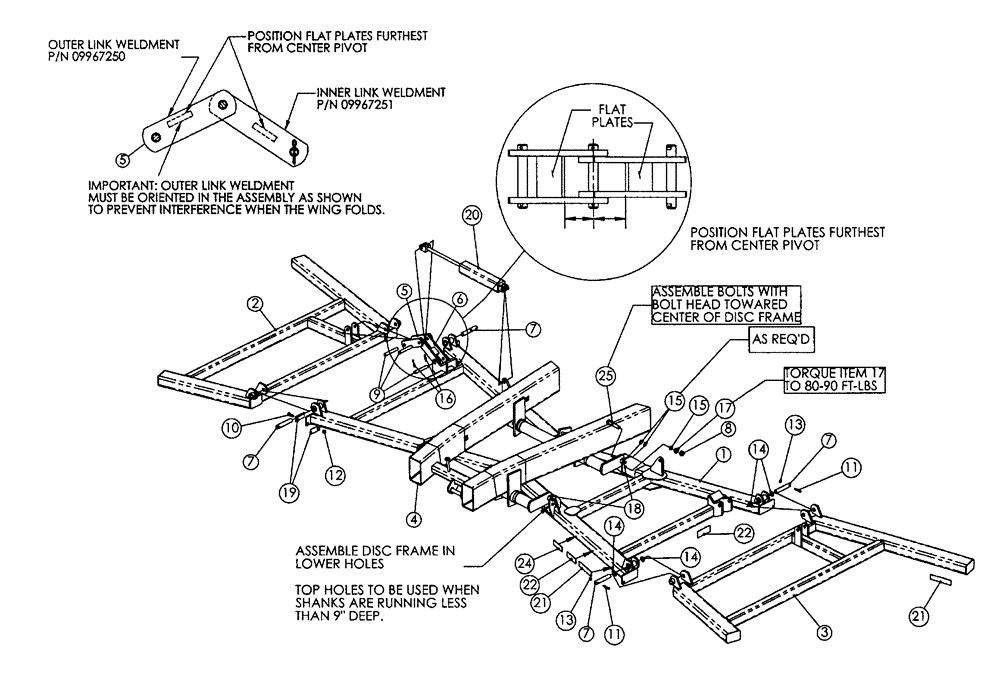

Схема запчастей Case IH 9300 - (75.200.01) - DISC ATTACHMENT (09) - CHASSIS/ATTACHMENTS
2
12
18
9
11
13
14
7
3
11
22
1
7
7
15
6
21
19
8
14
24
14
20
10
21
5
5
17
15
7
4
22
25
16
13

Артикул

Название

Примечание

Количество

1

87445412

FRAME

Center Disc

1шт.

Used On 2002 And Later Models

1шт.

1

09967230B

TUBE ASSY.

Center Disc

1шт.

Used On Prior To 2002 Models

1шт.

2

09967930B

FRAME

Disc Frame, Rh

1шт.

Used On 2002 And Later Models

1шт.

2

09967220B

TUBE ASSY.

Disc Frame, Rh

1шт.

Used On Prior To 2002 Models

1шт.

3

09967950B

FRAME

Disc Frame, Lh

1шт.

Used On 2002 And Later Models

1шт.

3

09967210B

TUBE ASSY.

Disc Frame, Lh

1шт.

Used On Prior To 2002 Models

1шт.

4

09967500B

TUBE ASSY.

Pull

1шт.

5

09967264

BRACKET

Link, Outer, With Instructions

2шт.

6

09967251

BRACKET

Link, Center

2шт.

7

14892077

SPECIAL PIN

1-1/4 x 7.50

4шт.

8

86992219

LOCK NUT

1, Stover

4шт.

9

14891663

HITCH PIN

1 x 6-3/4

6шт.

10

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

11

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

4шт.

12

85700693

NUT,5/8" - 11, Gr C

4шт.

13

86992214

LOCK NUT

7/16, NC, Stover

4шт.

14

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4 ID, Machine, 14 ga

1шт.

15

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1 ID, Machine, 14 ga

1шт.

16

432-1632

COTTER PIN,1/4" x 2"

12шт.

17

425-1016

NUT,1"-8, G5

4шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

19

09661456

SHIM

8шт.

20

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16, 3000 P.S.I.

2шт.

20

25330160R

REMAN-HYD CYLINDER

9300, DMI ECOLO-TIGER DISK RIPPER, 3 x 16, 3000 P.S.I.

2шт.

20

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

21

311864A1

REFLECTOR

Yellow

2шт.

22

18534227

DANGER DECAL

Danger

3шт.

24

18534223

DECAL

Torque

1шт.

25

16901623

BOLT

1 x 5-1/4, NC, Hex, A-325

4шт.

Выбрано товаров: 35
