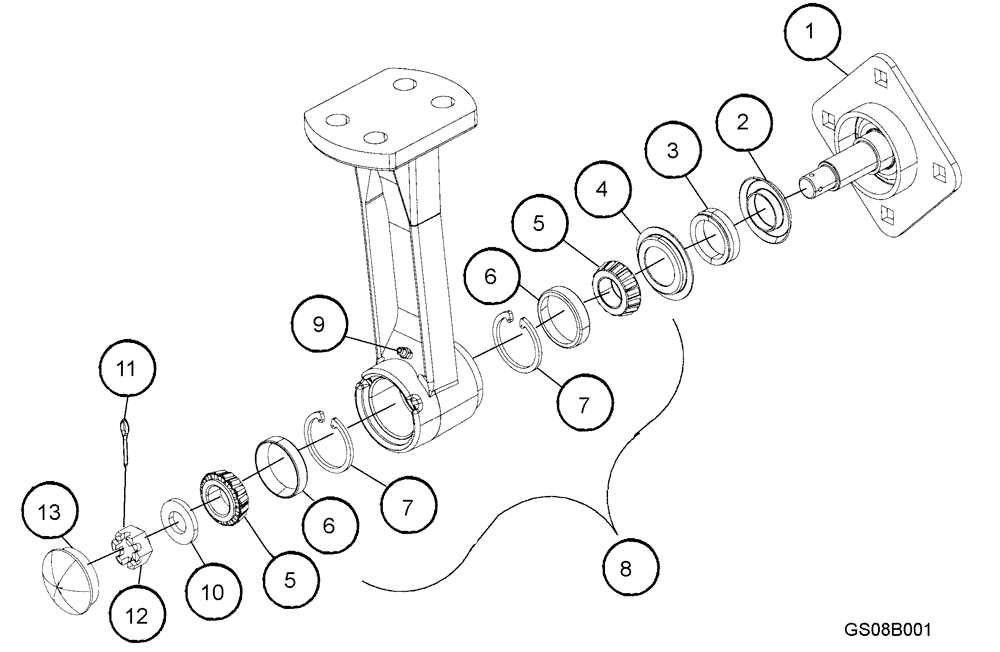

Запчасти Case IH 9300 (44.100.03) - DISC LEVELER HUB AND SPINDLE 2006 PRODUCTION (09) - CHASSIS/ATTACHMENTS

1

87377044

STUB AXLE/STEERING S

Complete

1шт.

2

87328282

SEAL

Counterface

1шт.

3

87328281

SEAL

V

1шт.

4

87328280

SEAL RETAINER

1шт.

5

463911R91

ROLLER BEARING,1" ID x 0.58"

1.00 Bore, L44643

2шт.

6

572564R1

BEARING CUP

1.980

2шт.

7

14610208

RETAINER

Snap Ring, 2.078 OD x .125

2шт.

8

20092001

AXLE

Disc Spindle Machine

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

10

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

.75 ID, HT, Black

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1шт.

12

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

13

28420021

CAP

Grease

1шт.
