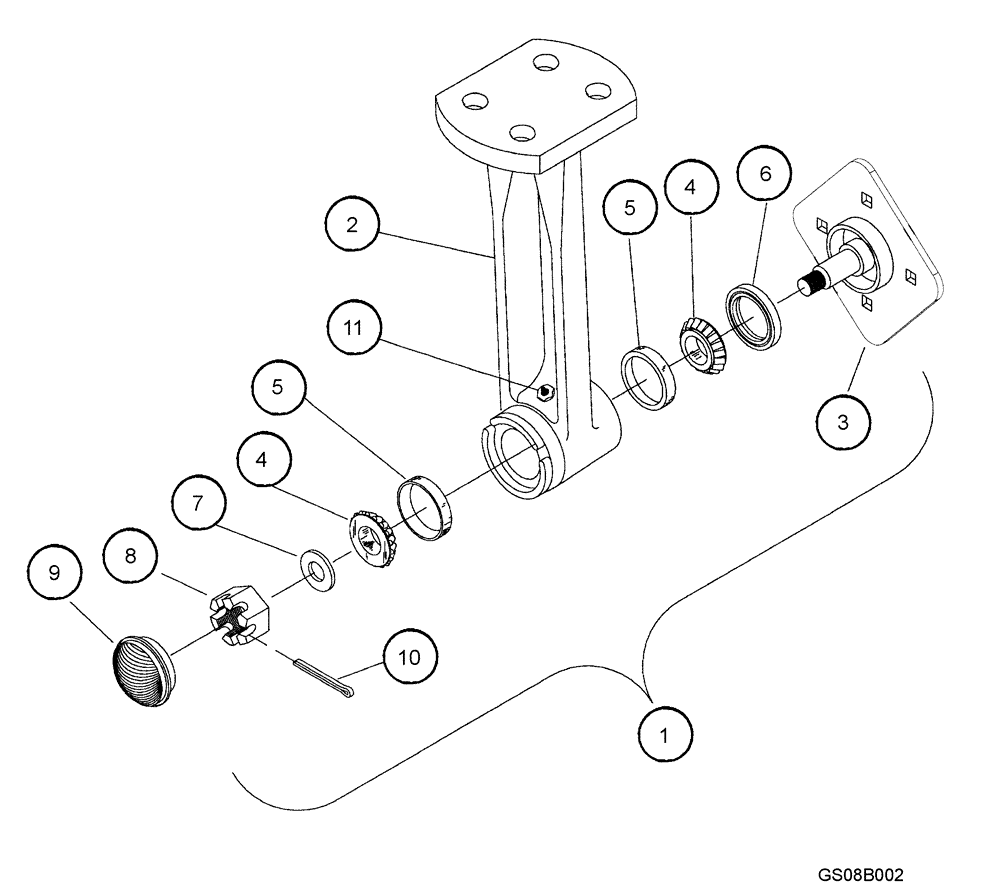

Запчасти Case IH 9300 (44.100.02) - DISC LEVELER HUB AND SPINDLE (09) - CHASSIS/ATTACHMENTS

1

87328481

HUB

Mount Assembly Complete

1шт.

2

09193150

HUB ASSY.

With Bearings and Cups

1шт.

3

09103120

DISC

Spindle

1шт.

4

463911R91

ROLLER BEARING,1" ID x 0.58"

1.00, L44643

2шт.

5

572564R1

BEARING CUP

1.980 OD, L44610

2шт.

6

21931375

SEAL

1.375, CR533468

1шт.

7

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4, Flat, H.T.

1шт.

8

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

9

28420021

CAP

Grease

1шт.

10

432-816

COTTER PIN,1/8" x 1"

1шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
