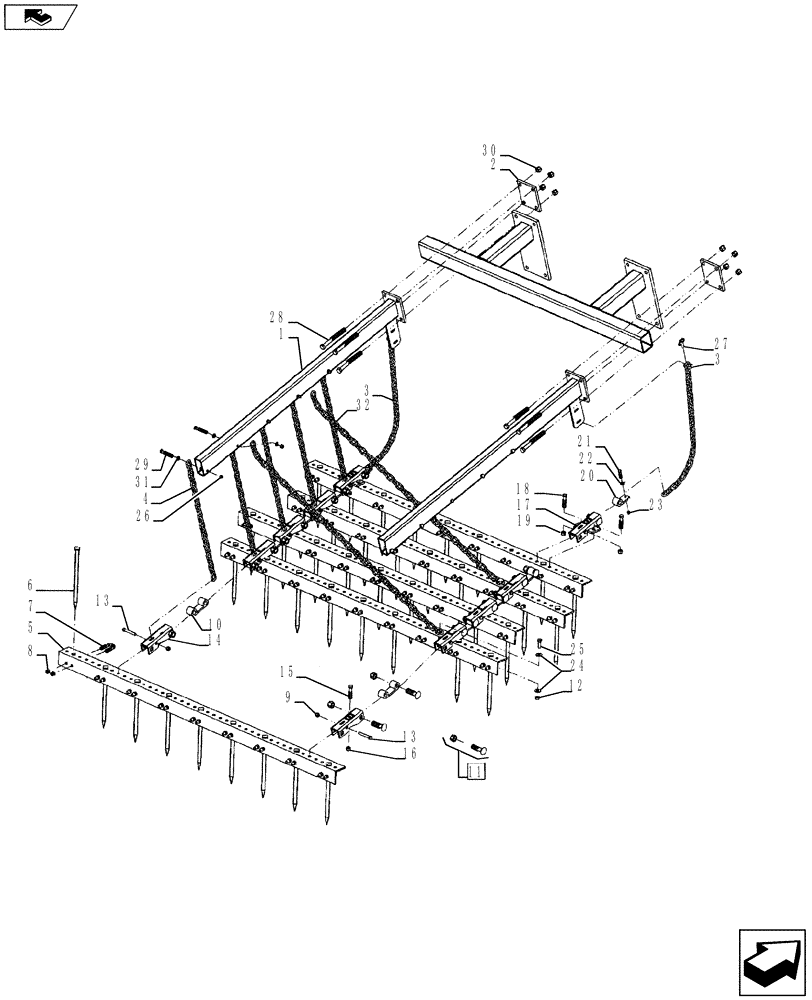

Запчасти Case IH 870 (75.200.18) - SPIKE HARROW (75) - SOIL PREPARATION

1

84213001

ARM

Mounting

2шт.

1

84419244

ARM

Mounting, Start Year: 01-MAR-11

2шт.

2

87417725

MOUNTING PLATE

2шт.

2

84419247

MOUNTING PLATE

, Start Year: 01-MAR-11

2шт.

3

87417726

CHAIN

Pull, 23 Links

2шт.

4

87417727

CHAIN

Lift, 23 Links

10шт.

5

84213015

ANGLE BAR

Tooth, 3 ft, 6 In (Less Teeth)

5шт.

5

84213016

ANGLE BAR

5 ft Bar

5шт.

5

84213017

ANGLE BAR

5 Bar, 9 Tooth 6 ft, 6 In

5шт.

5

84213018

ANGLE BAR

5 Bar, 11 Tooth, 8 ft

5шт.

6

84213019

TOOTH

6 Tooth

1шт.

7

87417737

U-BOLT

BOLT "U"

1шт.

8

80855

NUT,Hex, 3/8" - 24

1шт.

9

280980

NUT,7/16"-14, GC

10шт.

10

84213023

CHAIN

Pull Link Assembly

8шт.

11

84213525

CARRIAGE BOLT

16шт.

12

87333862

NUT

2шт.

13

2652

BOLT

7/16-14 x 3

10шт.

14

84213021

BRACKET, SUPPORTING

Channel Bracket

8шт.

15

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

10шт.

16

88871

NUT,1/2"-13, GC

10шт.

17

84213024

BRACKET, SUPPORTING

Channel Assembly

2шт.

18

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

19

88871

NUT,1/2"-13, GC

4шт.

20

84213025

CHAIN

Pull Assembly

2шт.

21

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

22

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

23

80855

NUT,Hex, 3/8" - 24

2шт.

24

87613183

WASHER,0.53" ID x 1.75" OD x 0.1" Thk

4шт.

25

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

26

80855

NUT,Hex, 3/8" - 24

10шт.

27

87417742

LINCH PIN

7/16

2шт.

28

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

8шт.

29

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

10шт.

30

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

31

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

12шт.

NOTE: Mount On Outside Main Frame Mounting Tubes Only

1шт.

32

84213328

CHAIN

Cross Chains

2шт.
