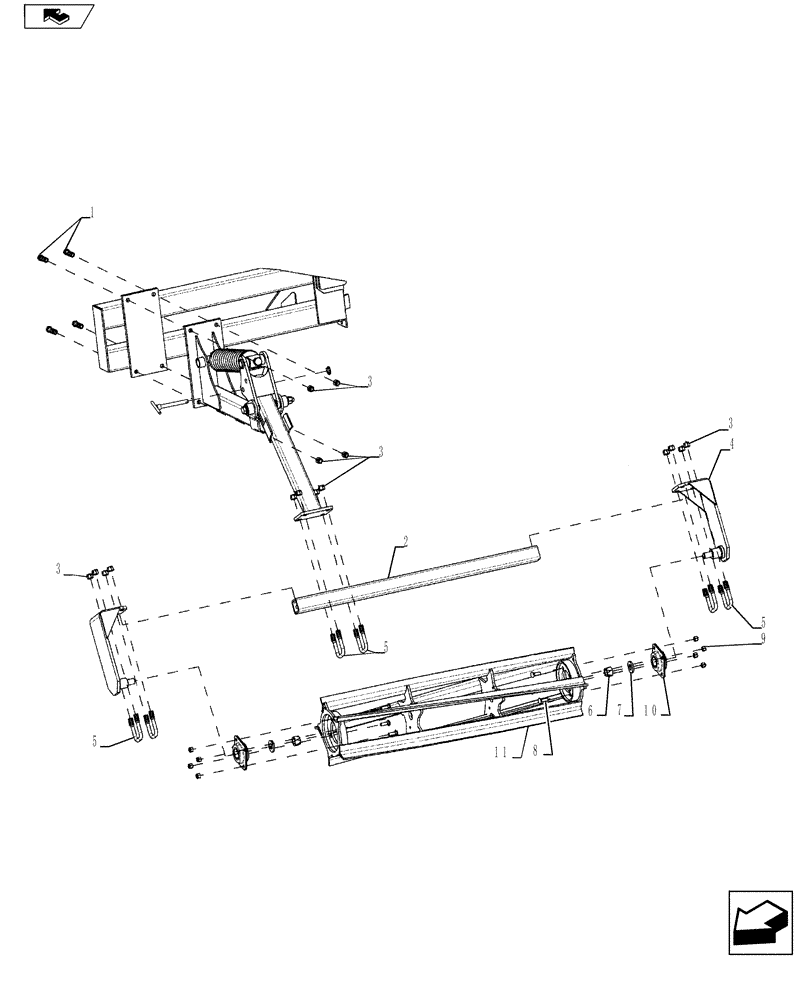

Запчасти Case IH 870 (75.200.15[01]) - DOUBLE EDGE REEL (75) - SOIL PREPARATION

1

87630

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

4шт.

2

87710651

REEL

48"

1шт.

2

87712234

REEL

72"

1шт.

2

87712237

REEL

96"

1шт.

3

85700693

NUT,5/8" - 11, Gr C

16шт.

4

87710650

SPINDLE

Round

2шт.

4

84327433

SPINDLE

Square

2шт.

5

87712238

U-BOLT

6шт.

6

9626600

NUT,1"-8, GC

Nut

2шт.

7

17916100

WASHER

2шт.

8

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

8шт.

9

88871

NUT,1/2"-13, GC

8шт.

10

ST491A

BALL BEARING,45mm ID

2шт.

10

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

2шт.

10

84151226

BALL BEARING,33.02mm ID

2шт.

11

87470077

BASKET

72 Inch

1шт.

11

87470079

BASKET

96 Inch

1шт.

11

87714550

BASKET

48 Inch

1шт.
