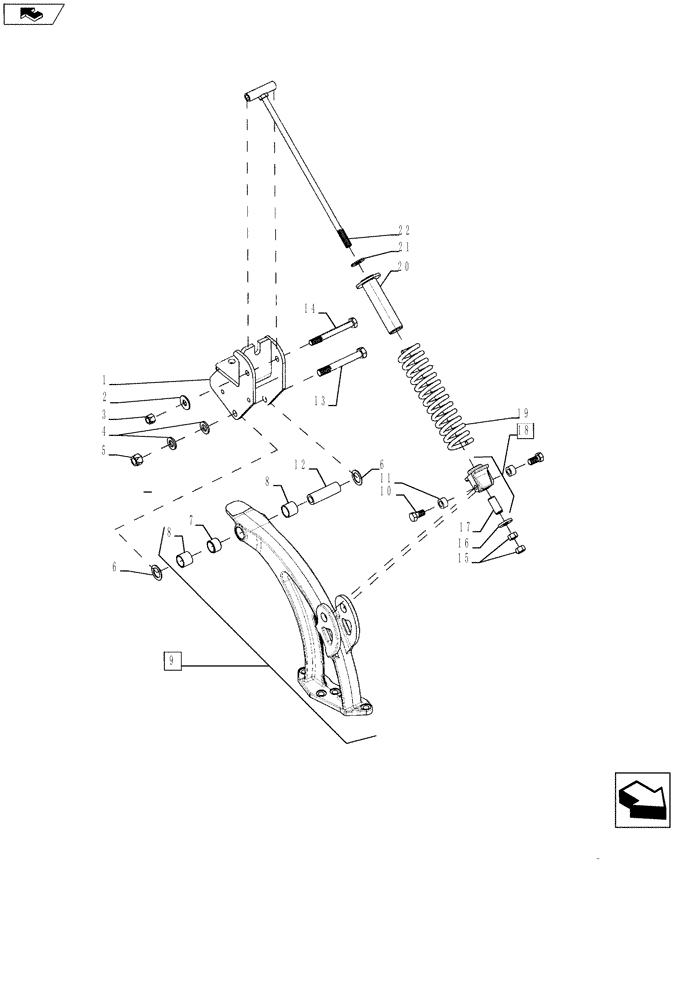

Запчасти Case IH 870 (75.200.13[01]) - DISK LEVELER ARM RESET ASSEMBLY (75) - SOIL PREPARATION

1

84128641

MOUNT

1шт.

1

84403591

MOUNT

, Start Year: 01-MAR-11

1шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

3

85700693

NUT,5/8" - 11, Gr C

1шт.

4

86624162

WASHER,0.81" ID x 1.5" OD x 0.18" Thk

2шт.

5

280375

NUT,3/4"-10, GC

1шт.

6

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1шт.

7

6636

BUSHING

2шт.

8

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

2шт.

9

84129036

ARM

Includes Ref#'s 7, 8 (Arm NSS)

1шт.

10

280319

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5, Full Thd

1шт.

11

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

1шт.

12

87715895

SWIVEL PIVOT

1шт.

13

16901217

BOLT

.75 x 6 NC, ZND

1шт.

14

16901022

CAPSCREW,Hex, 5/8" - 11 x 6"

1шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

16

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1шт.

17

87499612

BUSHING,15.88mm ID x 22.23mm OD x 50.8mm L

1шт.

18

84129222

TRUNNION

1шт.

19

24146820

SPRING

1шт.

19

84408161

COMPRESSION SPRING

, Start Year: 01-MAR-11

1шт.

20

09103020

RETAINER

1шт.

20

84408160

SPACER,15.47mm ID x 50.8mm OD x 171.5mm L

, Start Year: 01-MAR-11

1шт.

21

95-21069

WASHER,5/8"

1шт.

22

84146271

BAR

1шт.

22

84408163

PIVOT

, Start Year: 01-MAR-11

1шт.
