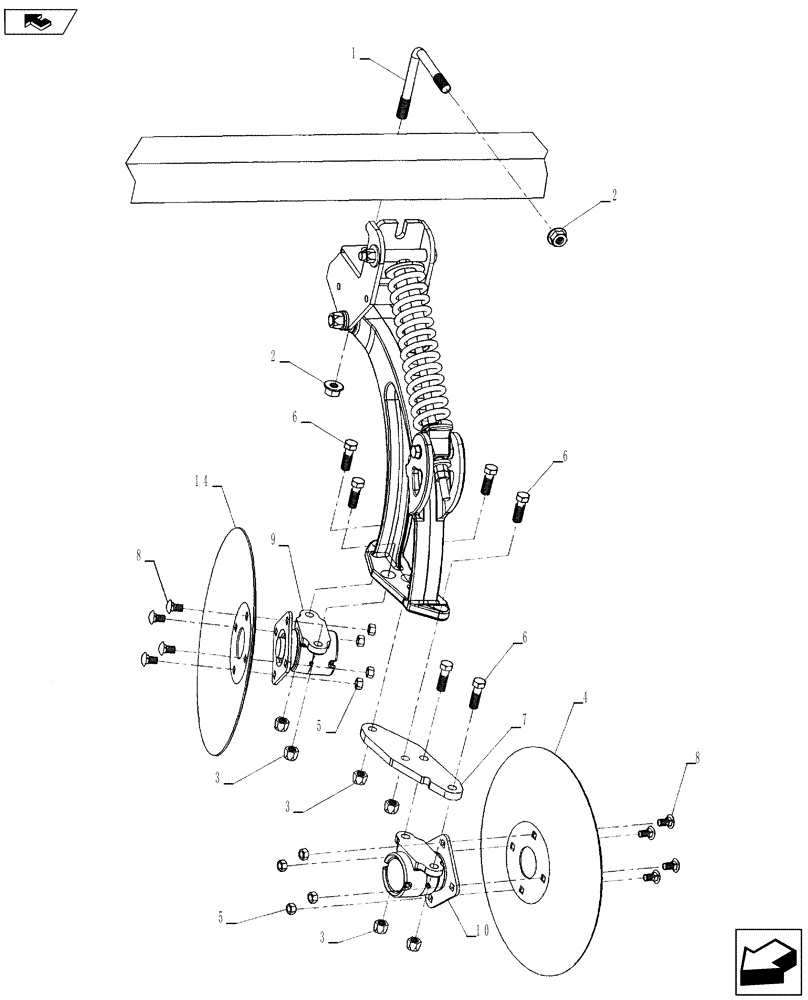

Запчасти Case IH 870 (75.200.12[01]) - REAR DISK LEVELER ARM (75) - SOIL PREPARATION

1

87427192

SPECIAL BOLT

3/4 x 5.94

1шт.

2

87490324

LOCK NUT

3/4

2шт.

3

85700693

NUT,5/8" - 11, Gr C

6шт.

4

84180366

DISK HARROW

DISK, MC,FLT CNTR 460X63.5X3

2шт.

5

280431

NUT,1/2"-13, G5

8шт.

6

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

7

84184568

PLATE

1шт.

8

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

9

84293352

HUB CARRIER

Front

1шт.

10

84293395

HUB CARRIER

Rear

1шт.
