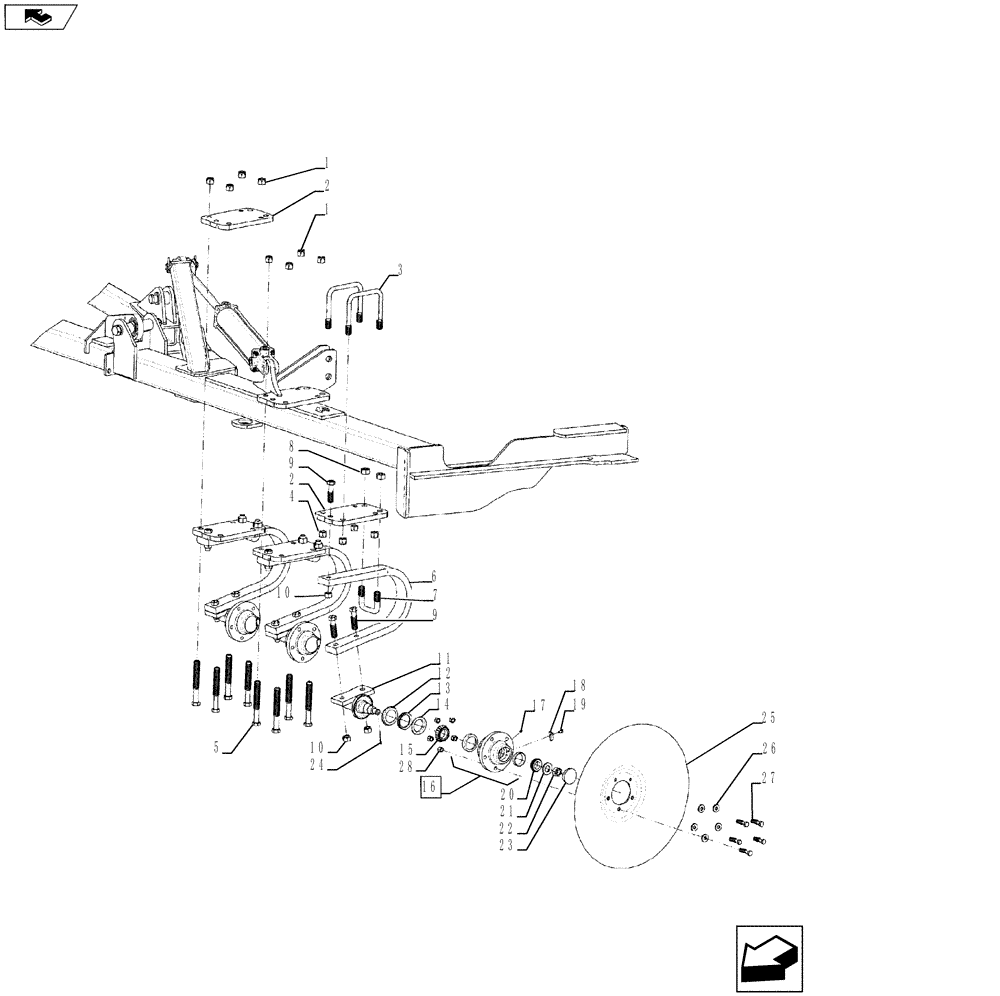

Запчасти Case IH 870 (75.200.10) - INDIVIDUAL DISK ATTACHMENT (75) - SOIL PREPARATION

1

280375

NUT,3/4"-10, GC

4шт.

2

87541405

PLATE

1шт.

3

87427186

U-BOLT

BOLT "U" 3/4 x 6.18

2шт.

4

280375

NUT,3/4"-10, GC

4шт.

5

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

4шт.

6

87429835

HANGER

1шт.

7

87518250

U-BOLT

7/8 x 3.06

1шт.

8

86992218

LOCK NUT

2шт.

9

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

3шт.

10

86992217

NUT

3шт.

11

09987810

SHANK

1шт.

12

87415558

SEAL,53.87mm ID x 78.26mm OD x 1.52mm Thk

1шт.

13

87415557

SEAL

1шт.

14

87415559

SEAL,55.63mm ID x 82.55mm OD x 1.02mm Thk

1шт.

15

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

16

28705011

HUB ASSY.

With Cups

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

18

09970770

RETAINER

1шт.

19

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

21

496-31106

WASHER,1 1/16" x 2" x .219", HDN

1шт.

22

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

23

28490001

HUB CAP

1шт.

24

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

25

87702617

DISC

22

1шт.

25

87691879

DISC

24

1шт.

26

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

5шт.

27

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

5шт.

28

88871

NUT,1/2"-13, GC

5шт.

29

87541406

SHANK

Cushion, Right Hand Assembly, Not Shown, 11 And 13 Shank

1шт.

29

87541407

SHANK

Cushion, Left Hand Assembly, Not Shown, 11 And 13 Shank

1шт.

30

87577024

HUB

Assembly, Not Shown, 11 And 13 Shank

1шт.
