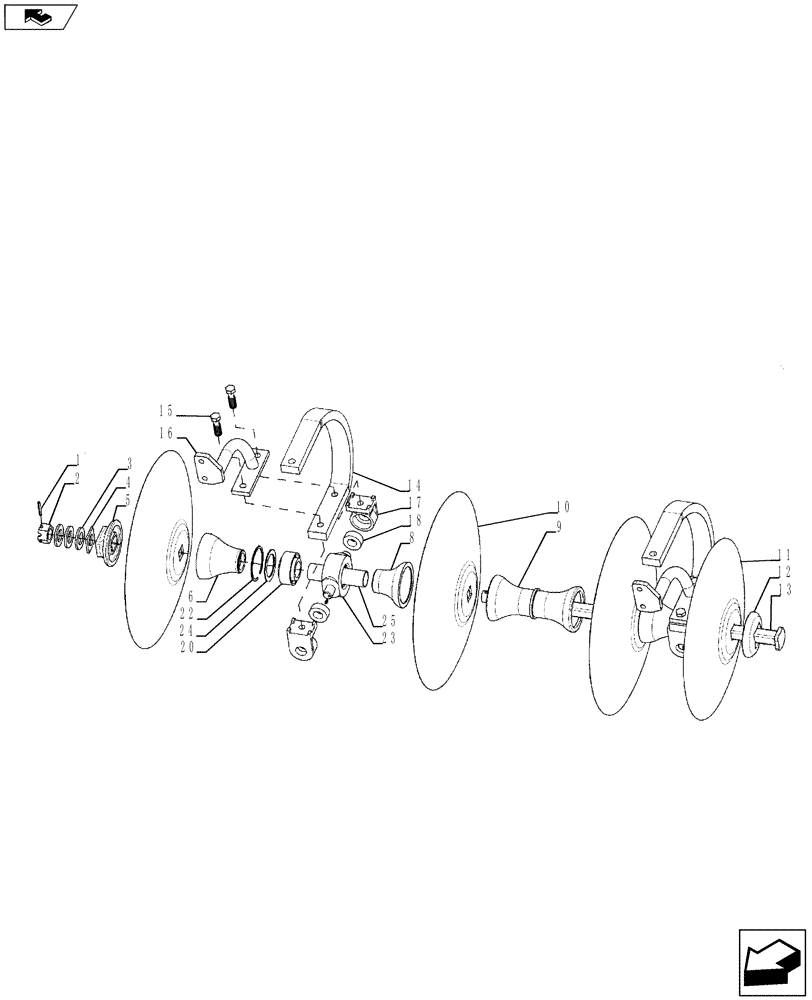

Запчасти Case IH 870 (75.200.09) - DISC, ASSY, TRUNNION (75) - SOIL PREPARATION

1

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.

2

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

3

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1шт.

4

488836R2

NUT

Nut

1шт.

5

549973R2

SQ HOLE WASHER

1шт.

6

87471561

BEARING HOUSING

Long, 12 Inch

2шт.

7

403922A1

SLEEVE,49.276mm ID x 55.17mm OD x 197mm L

2шт.

8

87471560

BEARING HOUSING

Short, 12 Inch

2шт.

9

403931A1

SPOOL

Spacing, 12 Inch

1шт.

10

58934C3

DISK HARROW

DISK, 26.5"X6.5MM CLV/LF

1шт.

11

87443004

PLOW DISC

1шт.

12

60615C1

WASHER

1шт.

13

87404886

BOLT

4 Blade, 12 Inch Spacing

1шт.

13

404069A1

PLOW BOLT

6 Blade, 12 Inch Spacing

1шт.

13

87722626

BOLT

5 Blade, 12 Inch Spacing

1шт.

13

404070A1

PLOW BOLT

9 Blade, 12 Inch Spacing

1шт.

13

87407707

BOLT

7 Blade, 12 Inch Spacing

1шт.

13

87407708

BOLT

8 Blade, 12 Inch Spacing

1шт.

14

87562228

SPRING

Right Hand

2шт.

14

87562227

HANGER

Left Hand

2шт.

15

280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

4шт.

16

87725635

BRACKET

Left Hand

2шт.

16

87725636

BRACKET

Right Hand

2шт.

17

195109A1

TRUNNION

4шт.

18

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

4шт.

19

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Not Shown

1шт.

20

409556A1

BEARING, BALL,55.56mm ID x 110mm OD x 55.56mm W

2шт.

22

101-21433

SNAP RING,#433, 4.641", Int

2шт.

23

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

2шт.

24

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

1шт.

25

403922A1

SLEEVE,49.276mm ID x 55.17mm OD x 197mm L

1шт.
