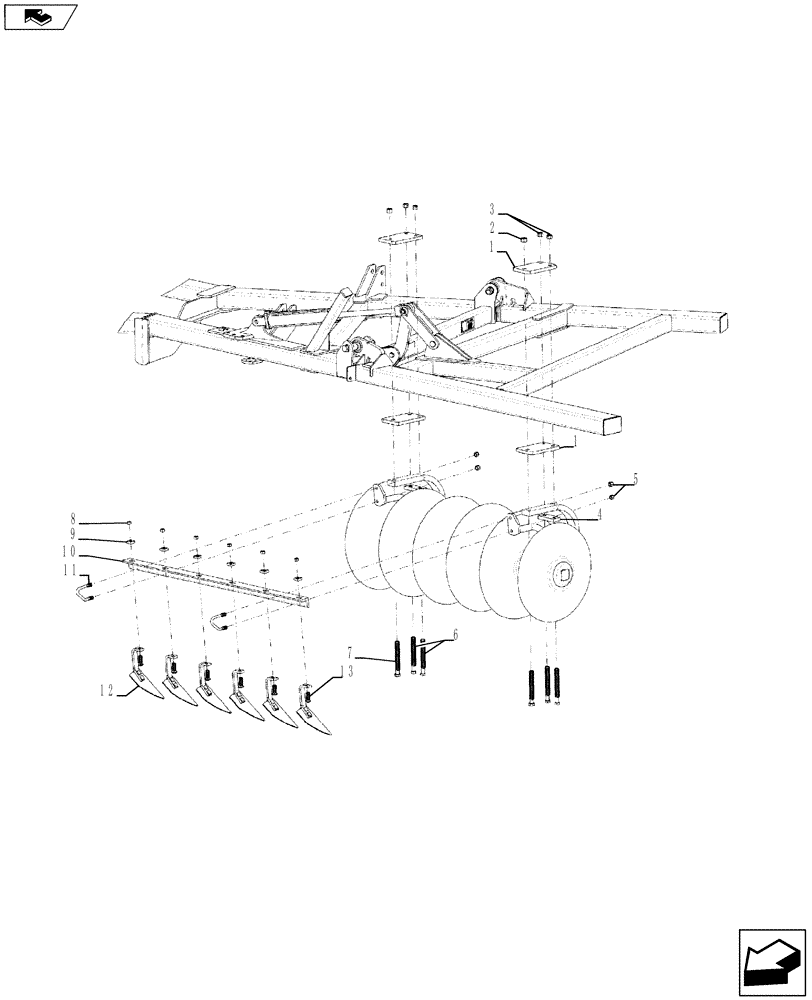

Запчасти Case IH 870 (75.200.07) - CUSHION DISK GANG (75) - SOIL PREPARATION

1

87712636

PLATE

Flat

4шт.

2

87681198

NUT,Hex, 7/8"-9, 0.45 high

2шт.

3

280375

NUT,3/4"-10, GC

4шт.

4

410082A1

STRAP

2шт.

5

85700693

NUT,5/8" - 11, Gr C

4шт.

6

86502676

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

4шт.

7

413-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

2шт.

8

85700693

NUT,5/8" - 11, Gr C

Stover

1шт.

9

87623346

WASHER,16.66mm ID x 38.1mm OD x 13.72mm Thk

5/8

1шт.

10

NSS

NOT SOLD SEPARAT

See Disk Frame Scraper Angles Page

1шт.

11

87562173

BOLT

S

2шт.

12

87567021

SCRAPER BLADE

Rear Bracket Left Hand, Front Bracket Right Hand

1шт.

12

87567027

SCRAPER BLADE

Rear Bracket Right Hand, Front Bracket Left Hand

1шт.

13

416-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 8

1шт.
