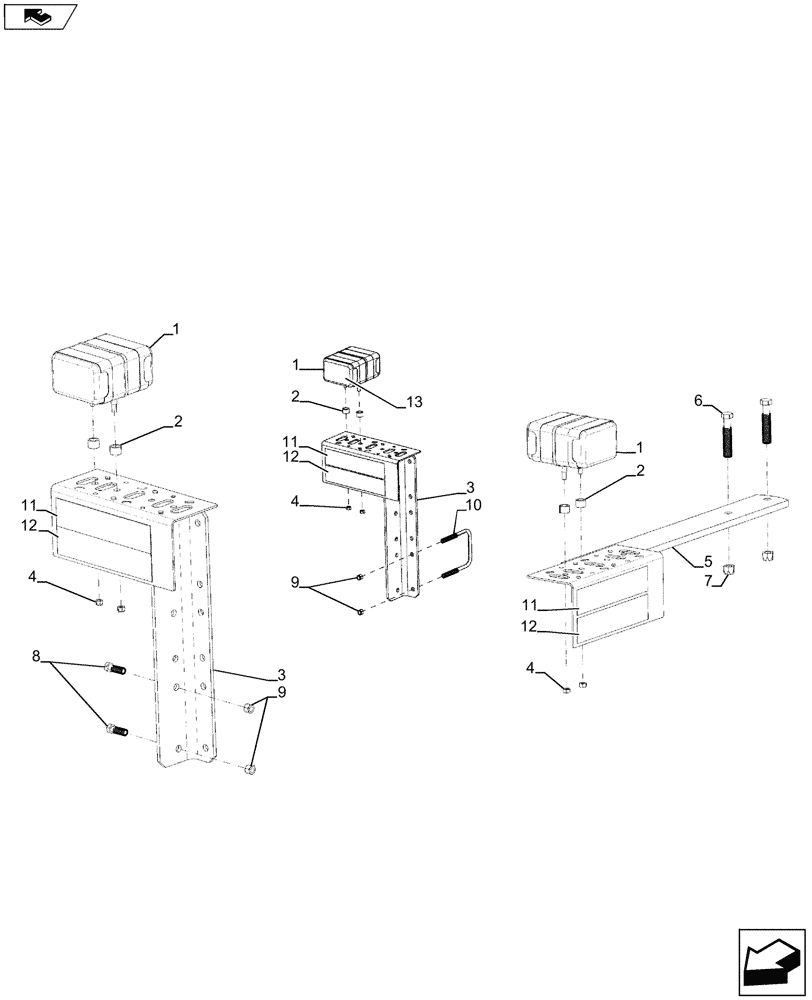

Запчасти Case IH 870 (55.404.02) - AMBER LIGHT BRACKET (55) - ELECTRICAL SYSTEMS

1

87446792

LAMP,12V, 21W, Amber

Amber

1шт.

2

87449661

SPACER

Bushing

2шт.

3

87328901

BRACKET

Lh Light Bracket, Short

1шт.

3

87328899

BRACKET

Rh Light Bracket, Short

1шт.

4

86992212

NUT

1/4

2шт.

5

87482043

BRACKET

Lh, 11 Shank

1шт.

5

87482044

BRACKET

Rh, 11 Shank

1шт.

5

84173131

BRACKET, SUPPORTING

Lh, 13 Shank

1шт.

5

84173132

BRACKET, SUPPORTING

Rh, 13 Shank

1шт.

6

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

7

88871

NUT,1/2"-13, GC

2шт.

8

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

9

88902

NUT,3/8"-16

2шт.

10

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 4 x 4

1шт.

10

16309110

U-BOLT

6 x 6

1шт.

11

311865A1

REFLECTOR

Flourescent

1шт.

12

311863A1

REFLECTOR

Red

1шт.

13

87459023

LENS

Amber

1шт.
