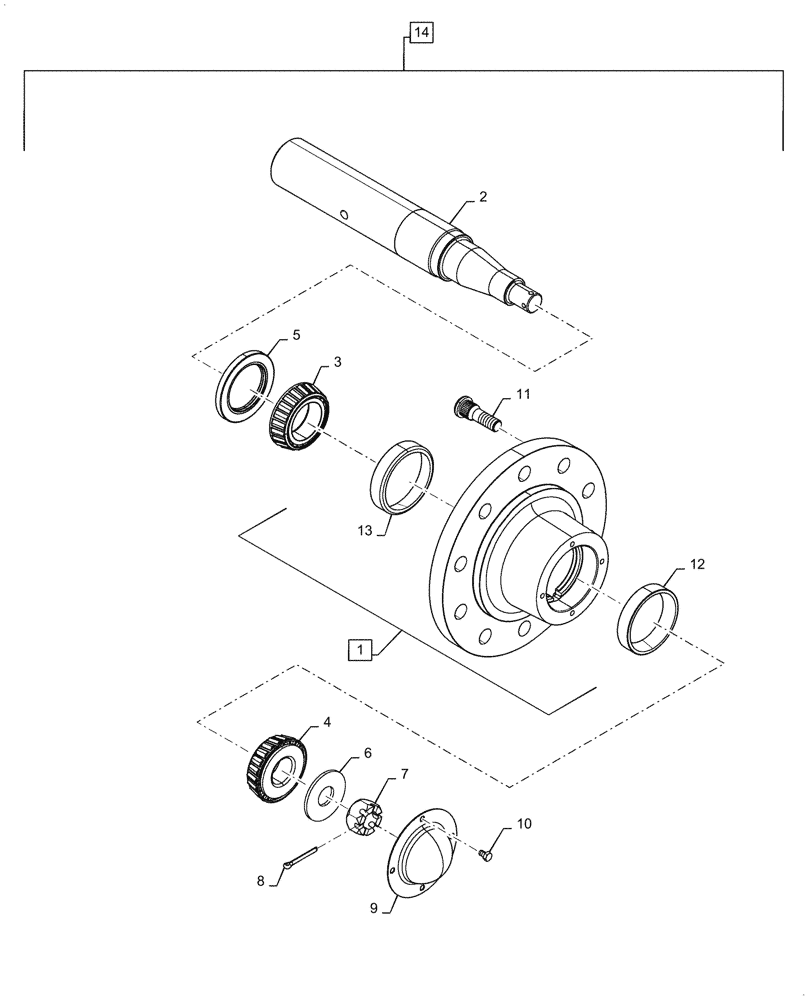

Запчасти Case IH 870 (44.100.02[02]) - SINGLE TRANSPORT ASSEMBLY, 10 BOLT (44) - WHEELS

1

84252595

HUB

Incl 11 - 13

1шт.

2

28387101

SPINDLE

1шт.

3

21872505

ROLLER BEARING,63.5 mm ID

1шт.

4

21871750

ROLLER BEARING,1.75" ID

1шт.

5

21933000

SEAL

3.0"

1шт.

6

17952632

WASHER

1шт.

7

14052012

SLOTTED NUT

1" x 1/4" GR 5

1шт.

8

88182

COTTER PIN,1/4" OD x 2" L

1шт.

9

84254765

HUB CAP

1шт.

10

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

11

16412418

STUD

0.75 - 16 x 2.75 GR 8

10шт.

12

714428

BEARING CUP

4.25" OD

1шт.

13

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

1шт.

14

28087101

STUB AXLE/STEERING S

Assembly, Incl 1 - 13

1шт.
