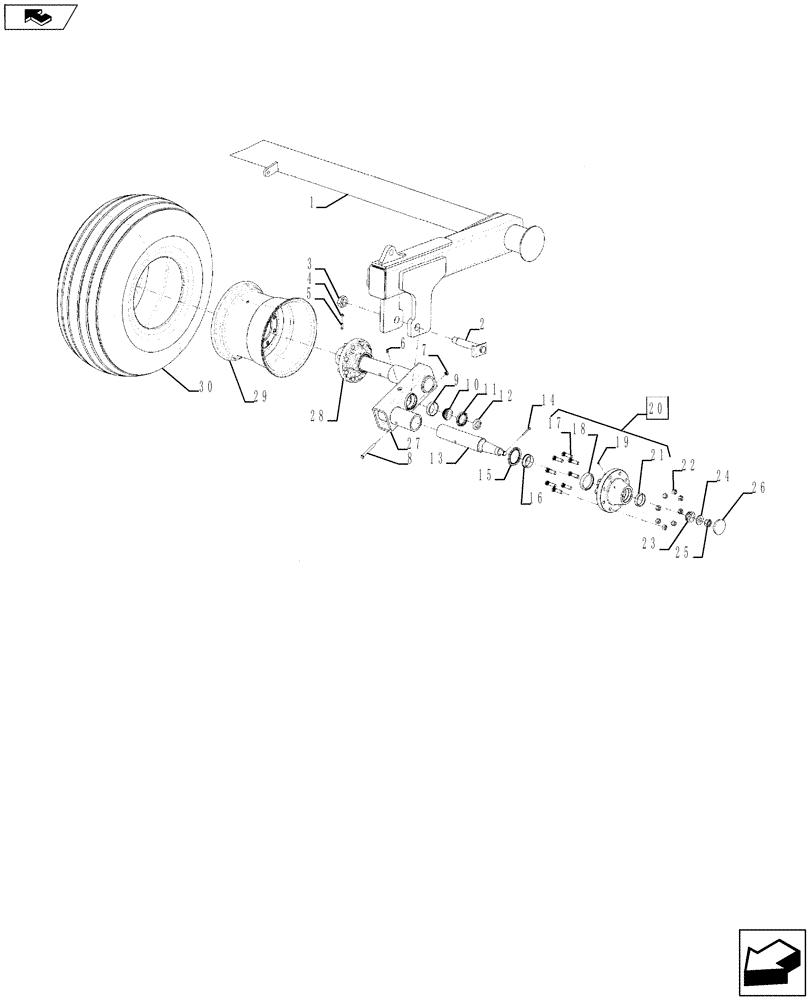

Запчасти Case IH 870 (44.100.01) - TANDEM TRANSPORT ASSEMBLY (44) - WHEELS

1

87738164

ROCKSHAFT

11 And 13 Shank

1шт.

2

04683050

AXLE PIN

1шт.

3

14032409

NUT

1шт.

4

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

5

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

1шт.

6

87645504

FITTING

1шт.

7

86992215

LOCK NUT,1/2"-13, GC

2шт.

8

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

9

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

2шт.

10

84229861

BEARING

1.500" I.D.

2шт.

11

21932510

SEAL

2шт.

12

06400573

SPACER

2шт.

13

87758625

SPINDLE

3IN, Machined

1шт.

13

84383792

SPINDLE

3IN, Machined, Start Year: 01-MAR-11

1шт.

14

88182

COTTER PIN,1/4" OD x 2" L

1шт.

15

87790840

SEAL

G083109

1шт.

16

49030

BEARING CONE,2.2505" ID x 0.86"

1шт.

17

557309R1

BOLT

8шт.

18

49029

BEARING CUP

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

1шт.

20

84237658

HUB

With Cups

1шт.

Inc. 17 - 19 And 21

1шт.

20

87758623

HUB

With Cups, Start Year: 01-MAR-11

1шт.

Inc. 17 - 19 And 21

1шт.

21

87476393

BEARING CUP,73.43mm OD x 14.73mm W

2.89

1шт.

22

554480R1

WHEEL NUT

5/8-18, GB

8шт.

23

87476379

BEARING CONE,41.27mm ID x 19.81mm W

1.62

1шт.

24

17916100

WASHER

1 Diameter

1шт.

25

86020752

SLOTTED NUT

1"-14, G5

1шт.

26

84238032

DUST CAP

Black

1шт.

27

87738165

AXLE

Right Hand

1шт.

27

87738166

AXLE

Left Hand

1шт.

28

84237927

SPINDLE

2шт.

29

87330641

WHEEL

14 x 1.1, Silver, 7, 11, And 13 Shank

2шт.

30

87326812

TYRE/TIRE

16.5 x 16.1 FI (E), 7, 11, And 13 Shank

2шт.
