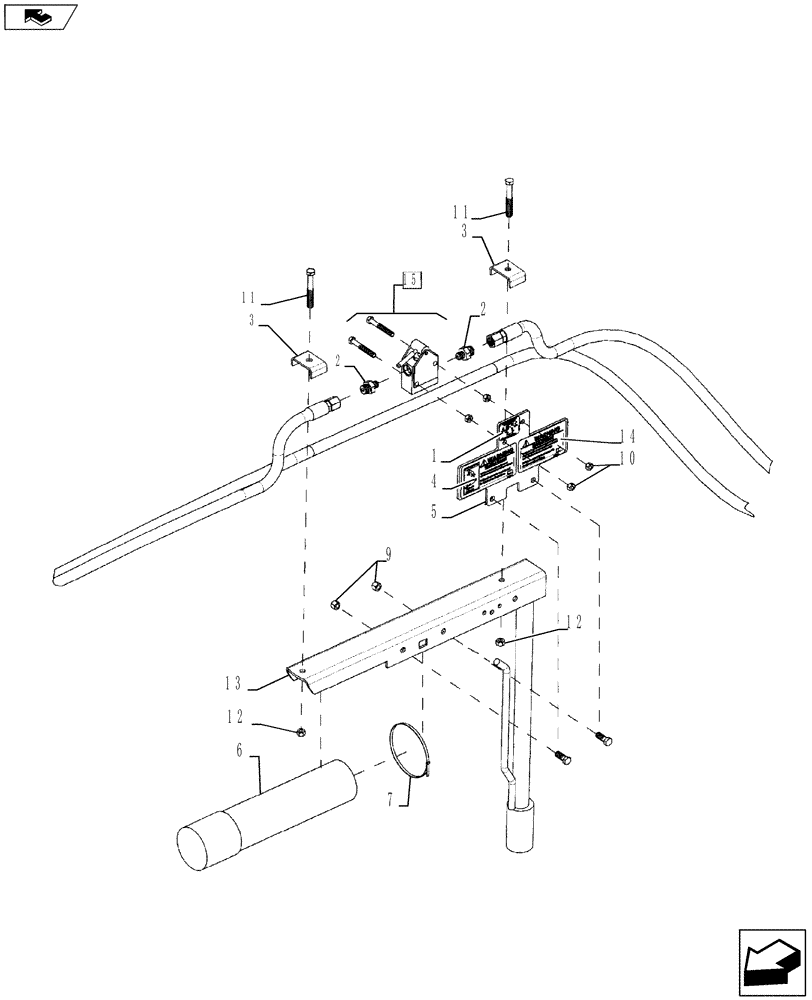

Запчасти Case IH 870 (39.110.02) - HOSE MOUNT (39) - FRAMES AND BALLASTING

1

87343258

DECAL

1шт.

2

25705041

COUPLING

3/4 Hydraulic Male

2шт.

3

06200125

HOSE CLAMP

1шт.

4

87353780

DECAL

1шт.

5

87328931

PLATE

1шт.

6

30026030

TUBE

Manual

1шт.

7

87040758

HOSE CLAMP,71.4mm - 95.2mm

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

80855

NUT,Hex, 3/8" - 24

1/4, Stover

2шт.

10

86992212

NUT

2шт.

11

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

87452523

MOUNTING PARTS

Hose Boom

1шт.

14

87353782

DECAL

1шт.

15

87328528

SHUT-OFF VALVE

1шт.
