(39.100.19[02]) - REAR DISK LEVELER WITH FINISHER FRAME (2011 - CURRENT)

Запчасти Case IH 870 (39.100.19[02]) - REAR DISK LEVELER WITH FINISHER FRAME (2011 - CURRENT) (39) - FRAMES AND BALLASTING

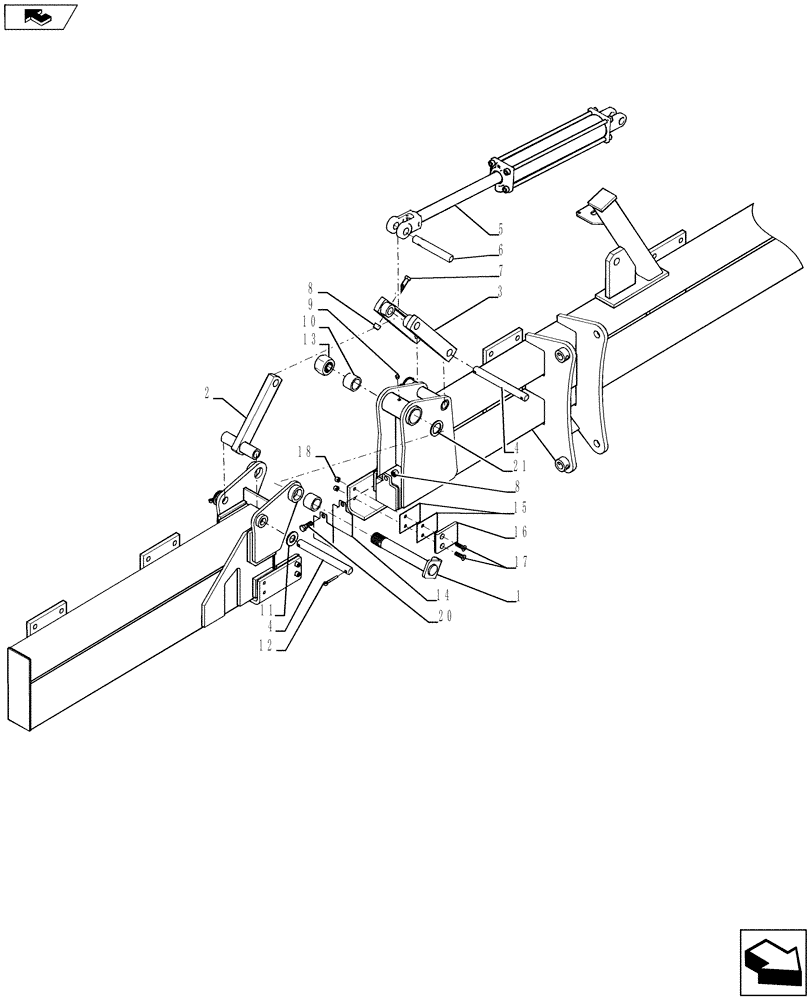

Схема запчастей Case IH 870 - (39.100.19[02]) - REAR DISK LEVELER WITH FINISHER FRAME (2011 - CURRENT) (39) - FRAMES AND BALLASTING
2
10
3
16
home
4
18
5
13
20
17
8
11
14
6
7
4
9
8
12
15
21
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84407881

PIN

1.5 in Wing Pivot

2шт.

2

87755236

LINK

2шт.

3

87755234

LINK

2шт.

4

84407853

PIN

Leveler

4шт.

5

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16, 9 Shank

2шт.

5

25330160R

REMAN-HYD CYLINDER

870, ECOLO-TIGER DISK RIPPER, 3 x 16, 9 Shank

2шт.

5

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

5

84220783

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.5 x 16, 11 And 13 Shank

2шт.

6

87748424

PIN

Cylinder

4шт.

7

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

8

88871

NUT,1/2"-13, GC

4шт.

9

87645504

FITTING

2шт.

10

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

4шт.

11

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

8шт.

12

88182

COTTER PIN,1/4" OD x 2" L

8шт.

13

87020431

LOCK NUT

2шт.

14

84408048

SHIM

1шт.

15

84410267

PLATE

1шт.

16

84408051

PLATE

4шт.

17

280760

HEX SOC SCREW,FLAT, 3/8" - 16 x 1-1/2"

8шт.

18

88902

NUT,3/8"-16

8шт.

20

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

21

17624022

BUSHING

2шт.
