Запчасти Case IH 870 (39.100.19[01]) - REAR DISK LEVELER WITH FINISHER FRAME (39) - FRAMES AND BALLASTING

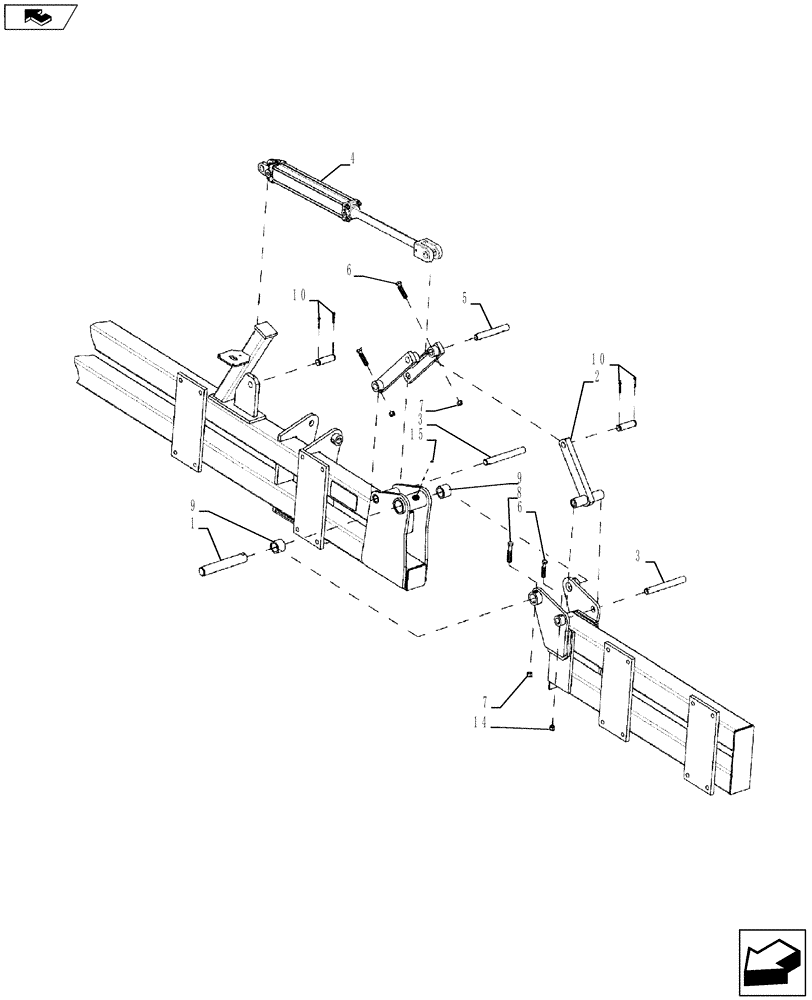

Схема запчастей Case IH 870 - (39.100.19[01]) - REAR DISK LEVELER WITH FINISHER FRAME (39) - FRAMES AND BALLASTING
7
6
4
1
14
9
3
10
8
5
6
3
9
15
10
home
2
7

Артикул

Название

Примечание

Количество

1

87755240

PIN

1-1/2 x 9-5/16, Start Year: 01-JAN-09

2шт.

1

84296511

PIN

1-1/2 x 9-1/2, Start Year: 01-JAN-10

2шт.

2

87755236

LINK

2шт.

3

87748423

PIN

1 x 8-1/4

4шт.

4

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16, 9 Shank, Start Year: 01-JAN-09

2шт.

4

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16, 9 Shank, Start Year: 01-JAN-10

2шт.

4

25330160R

REMAN-HYD CYLINDER

870, ECOLO-TIGER DISK RIPPER, 3 x 16, 9 Shank

2шт.

4

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

4

25335162

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16, 11 And 13 Shank, Start Year: 01-JAN-09

2шт.

4

84220783

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16, 11 And 13 Shank, Start Year: 01-JAN-10

2шт.

5

87748424

PIN

1 x 7

2шт.

6

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

6шт.

7

88871

NUT,1/2"-13, GC

, Start Year: 01-JAN-09

8шт.

7

88871

NUT,1/2"-13, GC

, Start Year: 01-JAN-10

6шт.

8

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

, Start Year: 01-JAN-09

2шт.

8

16445

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

, Start Year: 01-JAN-10

2шт.

9

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

4шт.

10

25890100

KIT

Cylinder

4шт.

11

87755234

LINK

2шт.

12

09661455

SHIM

Not Shown

1шт.

12

09661456

SHIM

Not Shown

1шт.

13

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

Not Shown

2шт.

14

85700693

NUT,5/8" - 11, Gr C

4шт.

15

87645504

FITTING

2шт.

Выбрано товаров: 24
