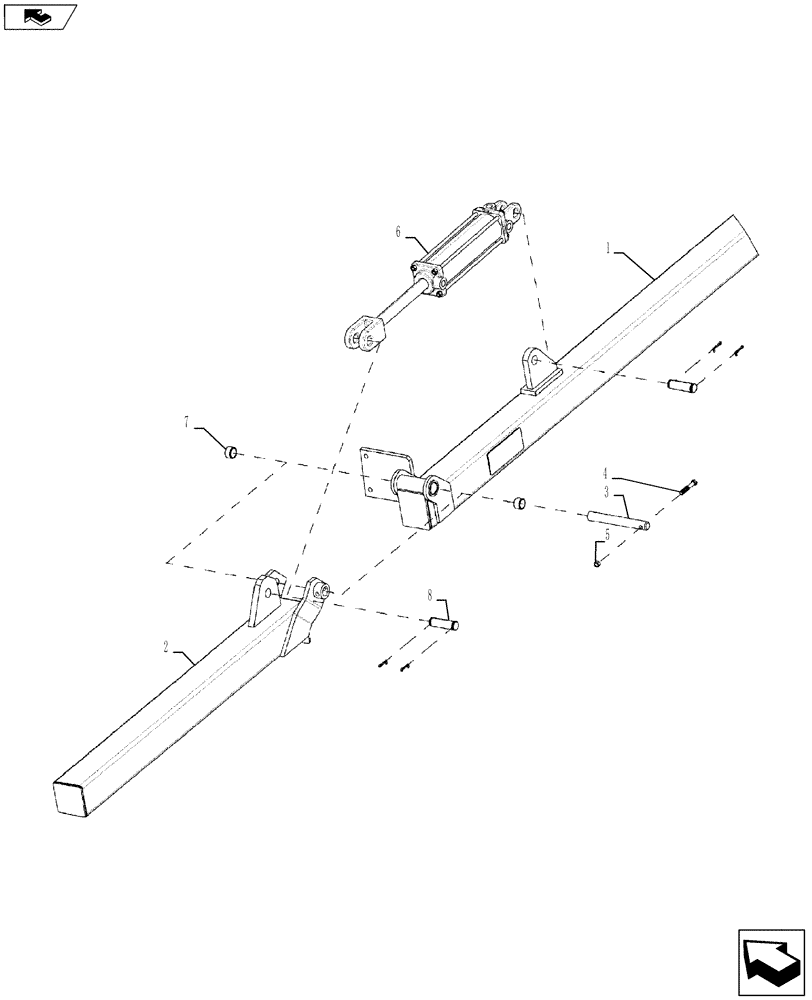

Запчасти Case IH 870 (39.100.14[01]) - REAR DISK LEVELER PRE 2011 AND 2011 7 & 9 SHANK (39) - FRAMES AND BALLASTING

1

84138907

FRAME

7 Shank

1шт.

1

84138909

FRAME

9, 11, And 13 Shank

1шт.

2

87715320

FRAME

Right Hand

1шт.

2

87715321

FRAME

Left Hand

1шт.

3

14891661

SPECIAL PIN,25.4mm OD x 204.7mm L

Clevis

2шт.

4

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

5

88902

NUT,3/8"-16

2шт.

6

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10

2шт.

6

25330101R

REMAN-HYD CYLINDER

870 ECOLO-TIGER DISK RIPPER

2шт.

6

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

7

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

4шт.

8

25890100

KIT

Cylinder

4шт.

9

09661455

SHIM

Not Shown

1шт.

9

09661456

SHIM

Not Shown

1шт.

10

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

Not Shown

1шт.

11

85700693

NUT,5/8" - 11, Gr C

Not Shown

1шт.
