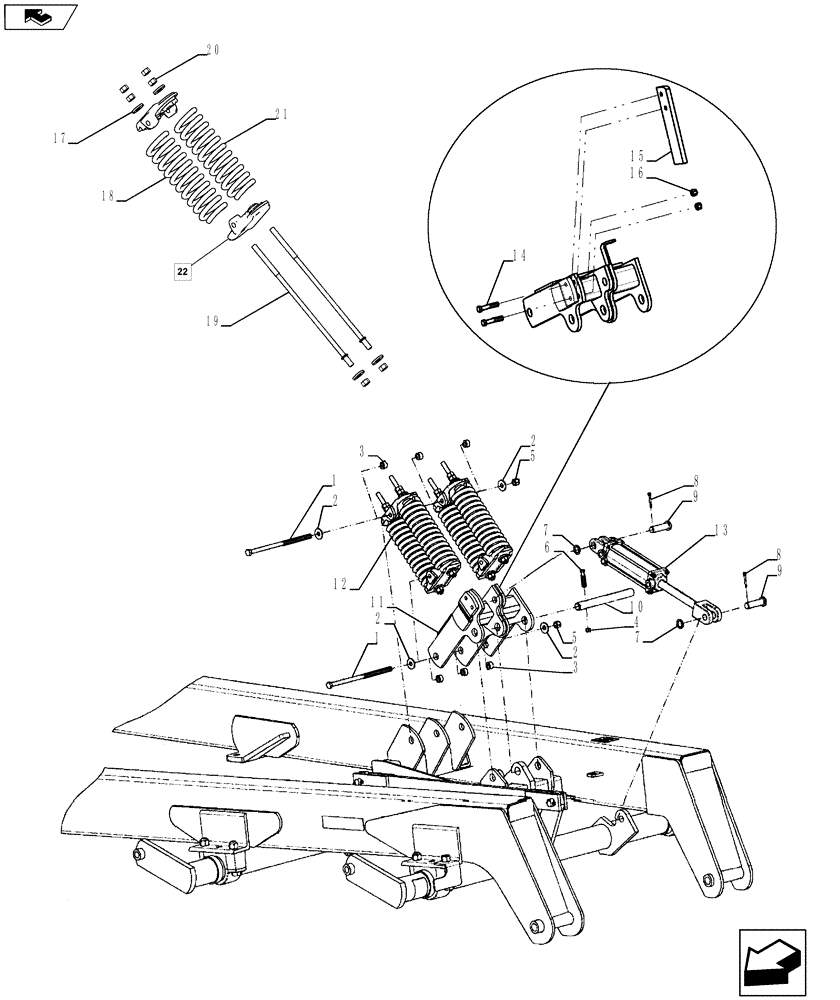

Запчасти Case IH 870 (39.100.12) - DOUBLE SPRING PACK ASSEMBLY (39) - FRAMES AND BALLASTING

1

84175131

BOLT

2шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

3

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

6шт.

4

280980

NUT,7/16"-14, GC

1шт.

5

85700693

NUT,5/8" - 11, Gr C

2шт.

6

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

7

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

8

88182

COTTER PIN,1/4" OD x 2" L

2шт.

9

87735776

PIN,25.4mm OD x 111.5mm L

2шт.

10

87738359

PIN

1шт.

11

84303070

PIVOT

1шт.

12

09900085

SPRING BOX

Individual Disks, Heavy Double Spring

2шт.

13

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8

1шт.

14

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

15

84332237

BAR

Pivot Stop

1шт.

16

88871

NUT,1/2"-13, GC

2шт.

17

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

8шт.

18

24162505

SPRING

Outer

2шт.

19

16510820

THREADED ROD

4шт.

20

9849623

NUT,5/8"-11, G5

12шт.

21

24143816

SPRING

Inner

2шт.

22

20090133

HINGE

Spring

1шт.
