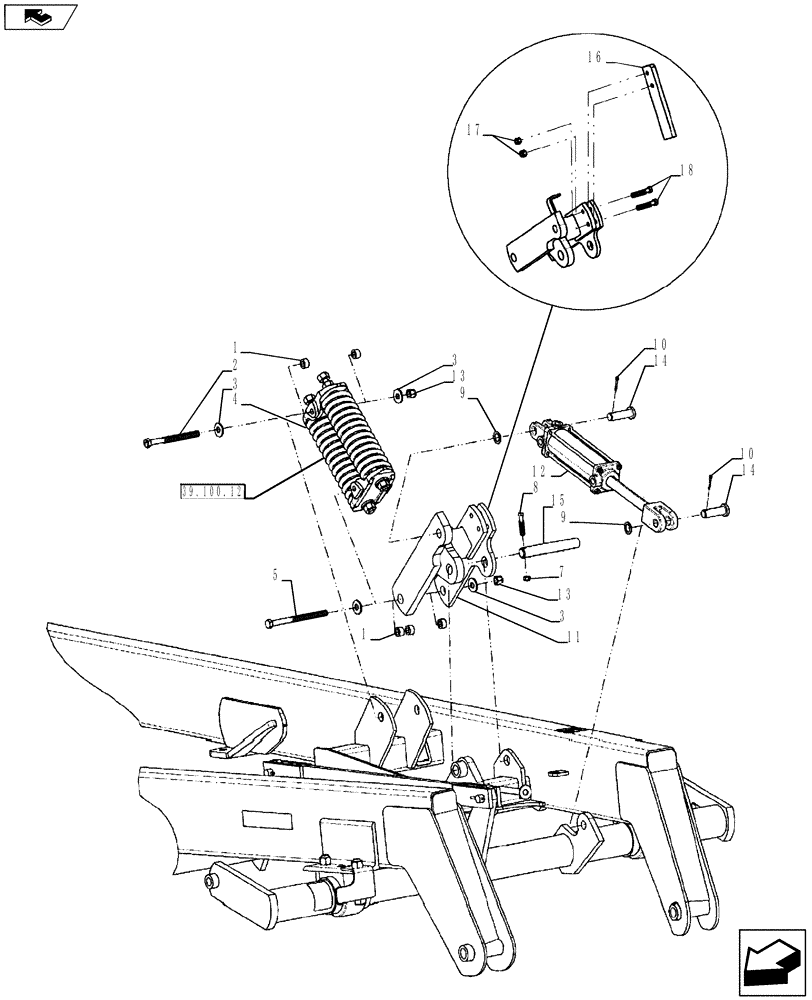

Запчасти Case IH 870 (39.100.11) - SINGLE SPRING PACK ASSEMBLY (39) - FRAMES AND BALLASTING

1

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

5шт.

2

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

1шт.

3

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

4

09900085

SPRING BOX

7 Shank Individual Disks

1шт.

4

87443458

CASTING

7 Shank Gang, 9 Shank Individual Disks

1шт.

4

87758259

SPRING

9 Shank Gangs

1шт.

4

84308103

COIL SPRING

COMPRESSION PACK 9 SHK

1шт.

5

86507001

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

1шт.

6

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

3шт.

7

280980

NUT,7/16"-14, GC

1шт.

8

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

9

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

10

88182

COTTER PIN,1/4" OD x 2" L

2шт.

11

84303069

PIVOT

1шт.

12

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

1шт.

13

85700693

NUT,5/8" - 11, Gr C

2шт.

14

87735776

PIN,25.4mm OD x 111.5mm L

2шт.

15

14892066

PIN

1.25 X 8.6

1шт.

16

84303098

BAR

Pivot Stop

1шт.

17

88871

NUT,1/2"-13, GC

2шт.

18

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

19

84303069

PIVOT

Single Sping

1шт.
