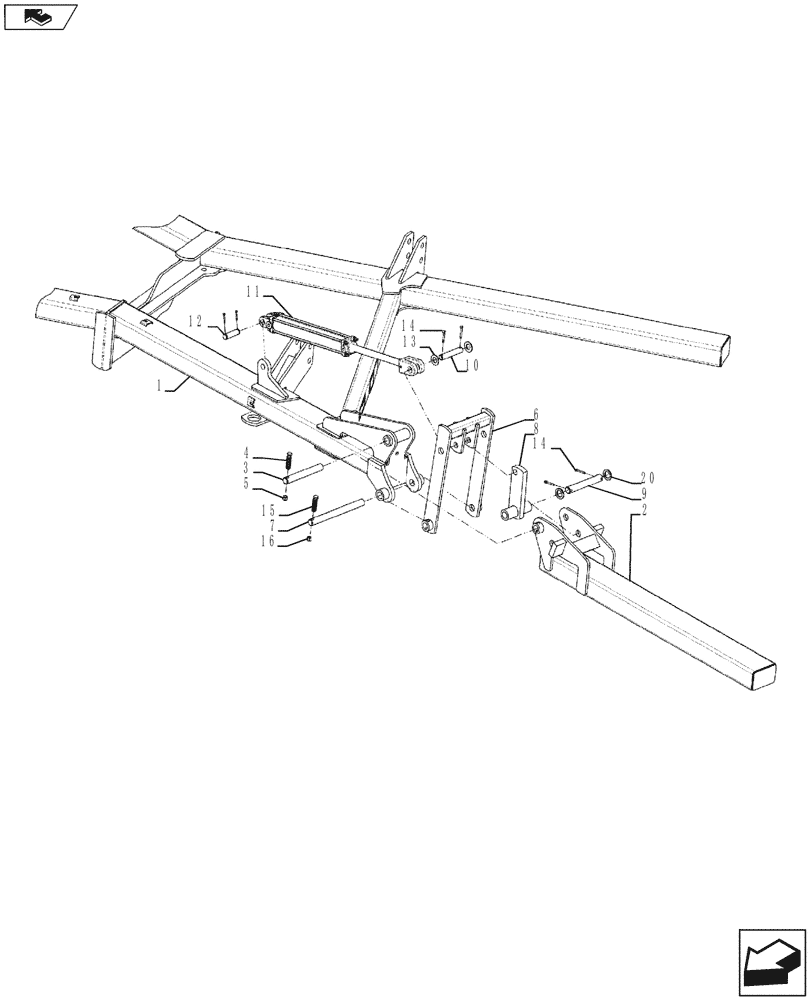

Запчасти Case IH 870 (39.100.07) - 9 SHANK DISK WING ATTACHMENT (39) - FRAMES AND BALLASTING

1

87471553

FRAME

Disk Main Frame

1шт.

2

87731836

FRAME

Disk Wing Frame

1шт.

2

84376797

FRAME

Disk Wing Frame, Start Year: 01-MAR-11

1шт.

3

87394432

PIN,31.75mm OD x 236mm L

1-1/4 x 9-1/4

1шт.

4

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

4шт.

5

88871

NUT,1/2"-13, GC

4шт.

6

87732224

BRACKET, SUPPORTING

2шт.

6

84376800

FRAME

, Start Year: 01-MAR-11

2шт.

7

87734577

PIN

Bottom, 31.75mm x 344mm

2шт.

7

84405493

PIN,31.75mm OD x 393mm L

Bottom, 31.75mm x 393mm, Not Shown, Start Year: 01-MAR-11

2шт.

7

88182

COTTER PIN,1/4" OD x 2" L

Not Shown, Start Year: 01-MAR-11

4шт.

8

87731922

BRACKET, PIVOT

PIVOT BRACKET Link

2шт.

8

84376781

LINK/SHACKLE

, Start Year: 01-MAR-11

2шт.

9

87734576

PIN

1 x 8-1/2

2шт.

10

84380509

PIN

2шт.

10

84380511

PIN,25.4mm OD x 140mm L

, Start Year: 01-MAR-11

2шт.

11

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16

2шт.

12

25890100

KIT

Cylinder Pin

1шт.

13

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

14

88182

COTTER PIN,1/4" OD x 2" L

4шт.

15

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

4шт.

16

88871

NUT,1/2"-13, GC

4шт.

17

09661455

SHIM

Not Shown

1шт.

17

09661456

SHIM

Not Shown

1шт.

18

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

Not Shown

1шт.

19

85700693

NUT,5/8" - 11, Gr C

Not Shown

1шт.

20

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

20

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

, Years: -01-MAR-11

1шт.
