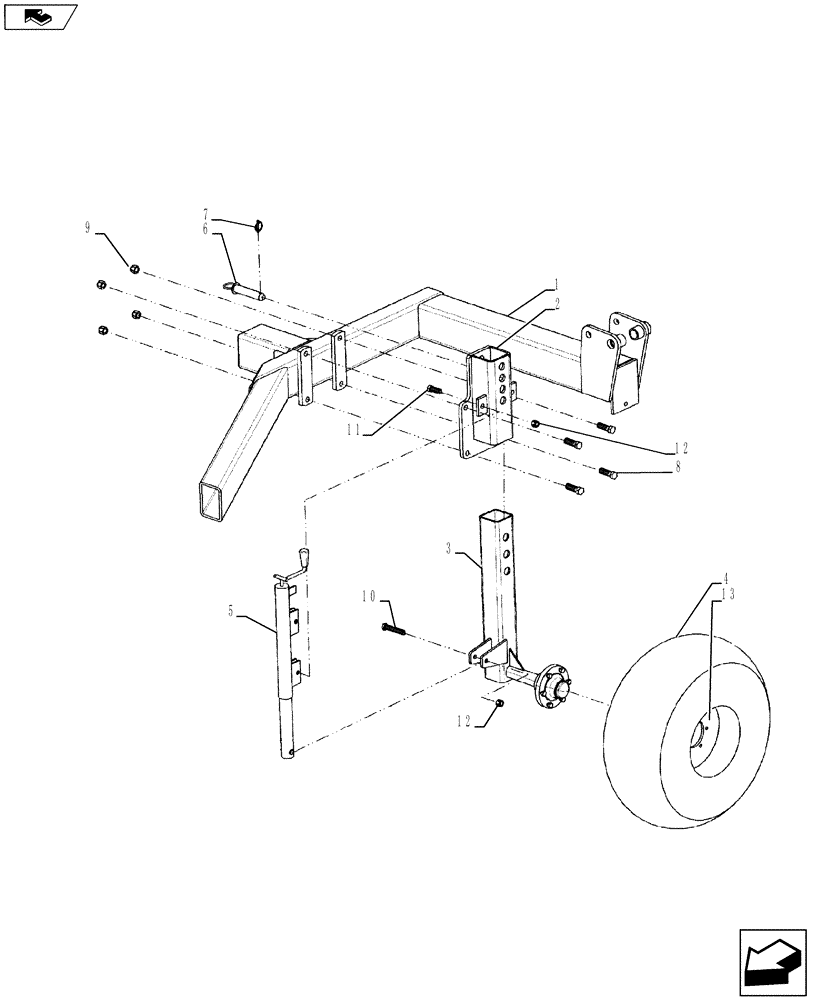

Запчасти Case IH 870 (39.100.03) - 13 SHANK MAIN FRAME GAUGE WHEEL (39) - FRAMES AND BALLASTING

1

87473256

FRAME

Right Hand, Wing

1шт.

1

87473258

FRAME

Left Hand, Wing

1шт.

2

84172570

BRACKET

Gauge Wheel

2шт.

3

84172574

PEDESTAL

Right Hand Assembly

1шт.

3

84172573

PEDESTAL

Left Hand Assembly

1шт.

4

1980754C1

LAND WHEEL

12.5L x 15 SL

2шт.

4

10010184

LAND WHEEL

11L x 15 FI F, Start Year: 01-MAR-11

2шт.

5

32253000

JACK ASSY.

3000 Pound

2шт.

6

14820421

CLEVIS

1-1/4 x 5-1/4

2шт.

7

A30338

PIN

1-1/4 x 1-3/4 Klik

2шт.

8

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

8шт.

9

280375

NUT,3/4"-10, GC

8шт.

10

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

11

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

12

85700693

NUT,5/8" - 11, Gr C

4шт.

13

10110254

WHEEL ASSY.

10L X 15 6 bolt

2шт.

13

10010284

LAND WHEEL

Silver 11L x 15FI F

2шт.
