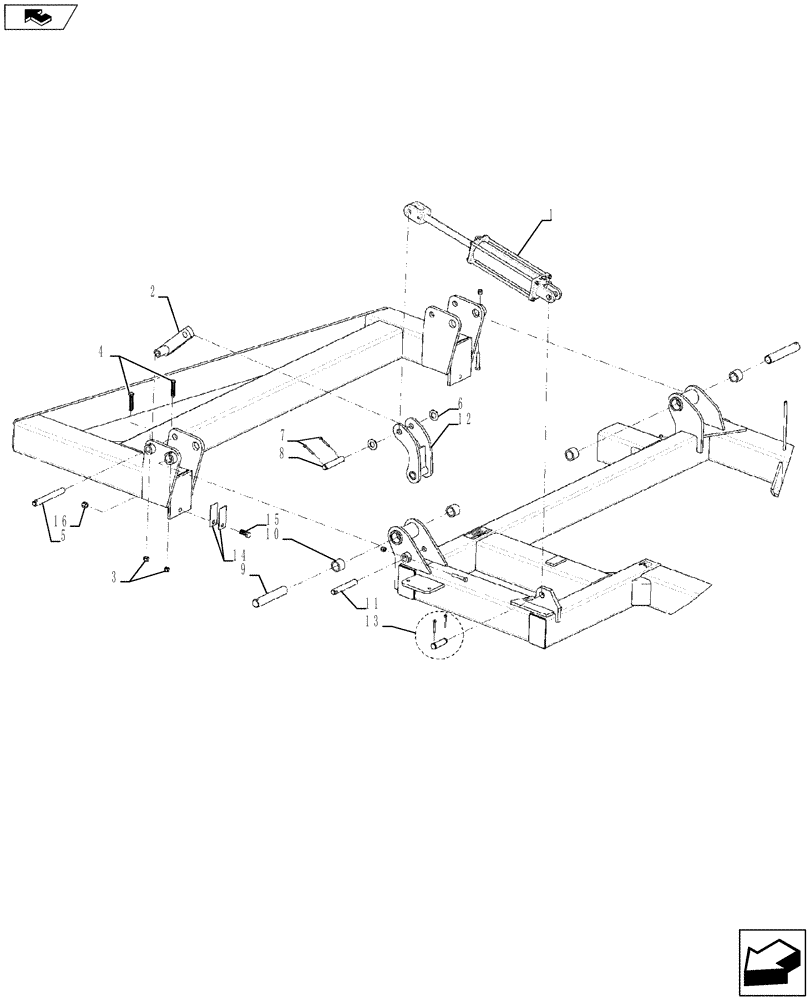

Запчасти Case IH 870 (39.100.02) - 11 AND 13 SHANK MAIN FRAME WING ATTACHMENT (39) - FRAMES AND BALLASTING

1

25335120

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3-1/2 x 12

1шт.

1

25335120R

REMAN-HYD CYLINDER

870 Ecolo-Tiger Disk Ripper

1шт.

25335120C

CORE-HYD CYLINDER

Return Number

1шт.

2

84172380

LINK

Main Frame, 11 And 13 Shank

1шт.

3

88871

NUT,1/2"-13, GC

4шт.

4

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

8шт.

5

87748420

PIN

1шт.

6

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

7

88182

COTTER PIN,1/4" OD x 2" L

2шт.

8

84380509

PIN

Disk Wing Cylinder

1шт.

9

87748419

PIN

2шт.

10

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

2 x 1.5

4шт.

11

87748421

PIN

1шт.

12

87741946

BRACKET, PIVOT

PIVOT BRACKET H Link, 11 Shank

1шт.

12

84172376

LINK

H, 11 And 13 Shank

1шт.

13

25890100

KIT

Cylinder Pin

1шт.

14

09661455

SHIM

1шт.

14

09661456

SHIM

1шт.

15

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

2шт.

16

85700693

NUT,5/8" - 11, Gr C

2шт.
