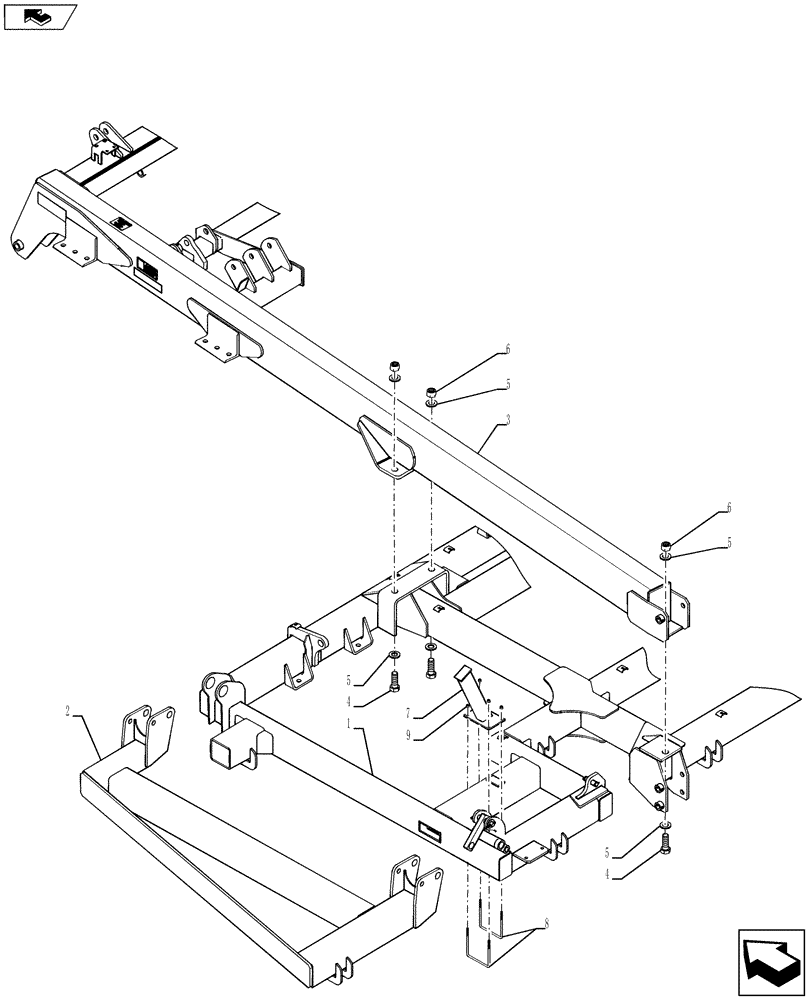

Запчасти Case IH 870 (39.100.01[02]) - MAIN FRAME INSTALLATION 2011 - CURRENT (39) - FRAMES AND BALLASTING

1

84406828

FRAME

Main, 7 Shank

1шт.

1

84406858

FRAME

Main, 9 Shank

1шт.

1

84406786

FRAME

Main, 11 And 13 Shank

1шт.

2

87740529

FRAME

Main Wing, 11 Shank, Lh

1шт.

2

87473258

FRAME

Main Wing, 13 Shank, Lh

1шт.

2

87742375

FRAME

Main Wing, 11 Shank, Rh

1шт.

2

87473256

FRAME

Main Wing, 13 Shank, Rh

1шт.

3

84406805

FRAME

Carrier, 7 Shank

1шт.

3

84406841

FRAME

Carrier, 9 Shank

1шт.

3

84406756

FRAME

Carrier, 11 And 13 Shank

1шт.

4

84128

BOLT,Hex, 1" x 3", Gr 5

7 And 9 Shank

6шт.

4

87493272

BOLT

Hex, 1-1/4" G5, 11 And 13 Shank

6шт.

5

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

7 And 9 Shank

6шт.

5

84405133

WASHER,1.31" ID x 2.38" OD x 0.25" Thk

1-1/4", HDN, 11 And 13 Shank

6шт.

6

9849633

NUT,1"-8, G5

7 And 9 Shank

6шт.

6

86614103

NUT,1 1/4"-7, GC

11 And 13 Shank

6шт.

7

87479417

FRAME

Wing Stop

1шт.

8

16309110

U-BOLT

2шт.

9

88902

NUT,3/8"-16

4шт.

10

47927293

FRAME

7 Shank Kit

1шт.

can be used to replace: 2011-Current 84406828 (MF) & 84406805 (CF) 2009-2010 87757851 (MF) & 87757928 (CF

1шт.

11

47927239

FRAME

9 Shank Kit

1шт.

can be used to replace: 2011-Current 84406858 (MF) & 84406841 (CF) 2009-2010 87758268 (MF) & 87470040 (CF)

1шт.

12

47927241

FRAME

11/13 Shank Kit

1шт.

can be used to replace 2011-Current 84406786 (MF) & 84406756 (CF) 2009-2010 87476751 (MF) & 87475717 (CF)

1шт.
